The DNA/DNR/DNF-SL-501-804 are a 4-port serial communications layer for UEI’s RACKtangle® I/O chassis. This layer offers isolated serial interfaces software-configurable as RS-232 or RS-485. DNx-SL-501-804 supports up to 44 Mbit/s transfer speed in RS-485 mode or up to 256Kbit/s in RS-232 mode. DNx-SL-501-804 uses 16550 UART controller on each port (FIFO mode only) and supports half- and full-duplex mode for RS-485.
The DNx-SL-501-804 includes the UEI-RSS Remote Serial Server application, Windows and Linux versions. This server allows a Windows or Linux host PC to configure the DNx-SL-501-804 ports as standard serial ports within the host OS (e.g. as COM1: to COM255: ports in Window or standard POSIX functions in Linux). The UEI-RSS supports up to 255 unique serial ports per Ethernet port on the host.

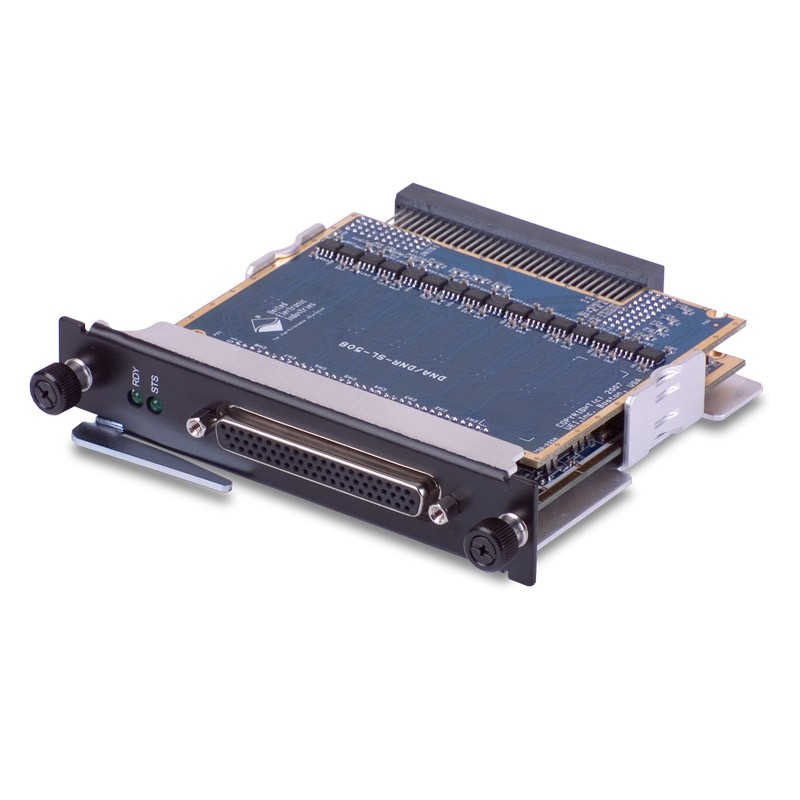

DNx-SL-501-804 - RS-232/485 Serial Communications Interface
Main features
- Arbitrary baud rate selection (0.01% accuracy)
- Fou use in UEI’s PowerDNR RACKtangle®
- Max speed of 256 Kb/s for RS-232 and 4 Mb/s for RS-485
- J1587/J1708 support included
- Each port is software-configurable as RS-232 or RS-485
- Completely independent bit rate settings for every port
- 350 V isolation between ports, ports and circuitry; 15 kV ESD
- Includes UEI-RSS Remote Serial Server application, Windows and Linux versionsx
