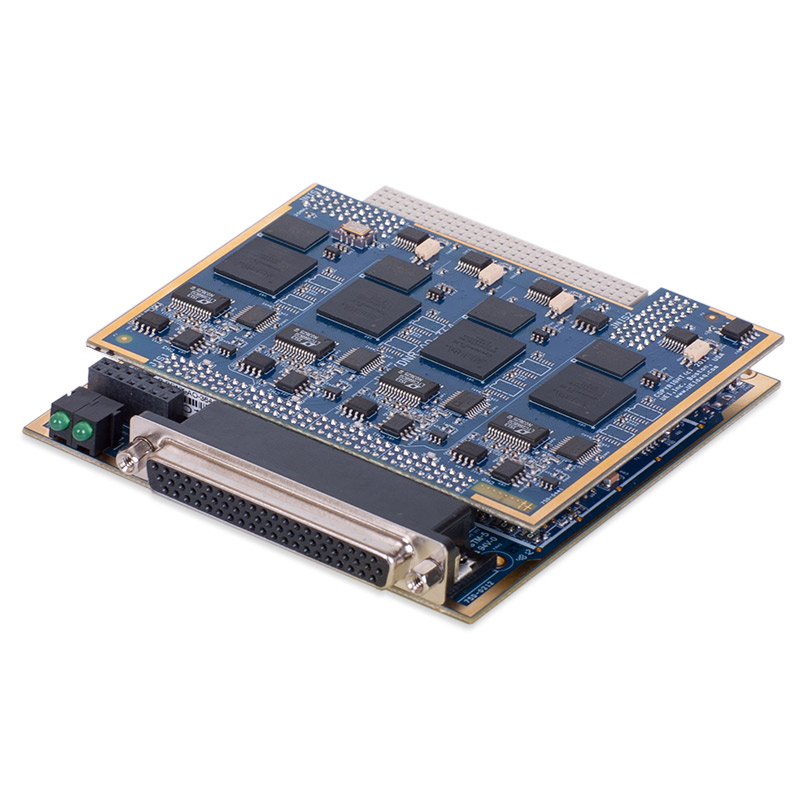

UEI board DNx-AO-364 is a 4 channels function / arbitrary generator.
Technical specifications
The UEI manufacturer’s board, DNX-AO-364 is a 4-channel function generator and arbitrary generator board. The 4 channels are independent, configurable from 1 mhz to 150 Khz with an output resolution of 0.25 Hz.
Software and drivers
The UEIDAQ Framework library uses the same API to access all devices of the DNx distributed cards. Using the UEIDAQ Framework library significantly reduces the amount of code required to perform data acquisition and control applications. UEI supports all 32/64 bit versions of Windows up to the most recent version of Windows 10. The UEIDAQ Framework provides a set of C ++ classes to easily interface your C ++ programs with acquisition devices UEI data. The UEIDAQ Framework also comes with an ANSI-C API. Instantly download Windows software and drivers for PowerDNA / DNR hardware from the UEI. Includes UEIDAQ Framework library, which supports the following software: VisualBASIC 6, VB.NET, LabVIEW, MATLAB, LabWindows / CVI, OPC server, Excel, .NET, C #, C / C ++, Borland Delphi, Borland C ++ Builder.
Depending on the reception station, the card references will be:
– DNA-AO-364 for Cubes
– DNR-AO-364-024 for Racks
– DNF-AO-364 for the FLATRACK
Card usable with the UEILogger.
