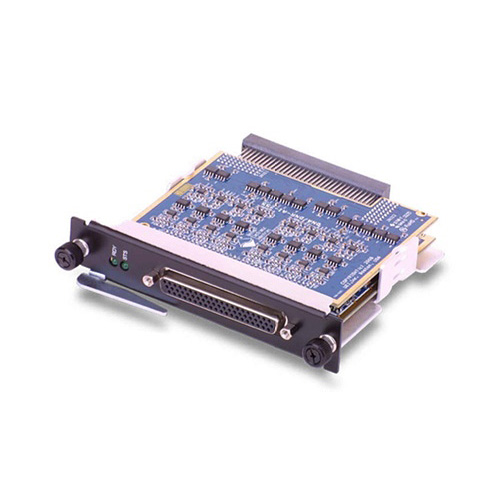

The DNA-AI-255-815 and DNR-AI-255-815 are two-channel Synchro/Resolver input and output boards for UEI’s powerful Cube andRACKtangle I/O chassis, respectively. The boards are suitable in a wide variety of test, measurement and control applications as well as providing simulated outputs for test and simulator applications. The board may be configured as two inputs, two or outputs, or one input and one output.
The board provides 2 input channels that will monitor either 3-wire synchros or 4-wire resolvers with inputs between 5 and 115 Vrms. For applications requiring a reference voltage greater than 28 Vrms, external excitation must be supplied. The board’s high precision circuitry combined with each channel’s independent 16-bit A/D converter allows measurement accuracies up to ± 2.6 arc-minute. The inputs may be read at rates up to the excitation frequency (4 kHz max).
Each channel provides its own programmable reference with outputs independently programmable from 2 to 28 Vrms at frequencies from50 to 4,000 Hz and up to 1.2 VA. When using external references, the DNx-AI-255-815 automatically adjusts simulated outputs for variable amplitude and frequency references in one reference cycle.
The DNA/DNR-AI-255-815 also provides two channels of synchro or resolver output that are ideal for driving such items as attitude indicators or as a test source for a wide variety of synchro or resolver input devices. The outputs each accept an independent reference signal and offer 16-bit output resolution. Each channel will drive up to 28 Vrms at 1.2 VA without external buffering.
The board offers 350 Vrms of isolation between channels as well as between the I/O connections and the Cube or RACKtangle chassis. Like all PowerDNA/UEILogger I/O boards, the DNA-AI-255-815 offers operation in harsh environments and has been tested to 5g vibration,50g shock, -40 to +85 °C temperatures, and altitudes up to 70,000 feet in Cube based systems.
An easy to use yet powerful API is provided for applications written for Linux and most real-time operating systems including QNX, RTX, Intime, and VxWorks. Windows programmers may also use the theUEIDAQ Framework which provides an even simpler API that supports all popular Windows programming languages. Finally, the Frameworksupplies complete support for those creating applications in LabVIEW, MATLAB/Simulink or any application supporting ActiveX or OPC servers.
