UEI card DNx-AI-217 24-bit 16-channel 120Ks/s per channel for a maximum total of 1600Ks/s per card
Technical specifications
The UEI manufacturer’s card, DNX-AI-217 is an analog acquisition card with 16 differential channels of maximum sampling of 1600Ks/s for all the channels, with a resolution of 24 bits and an input range of + – 10 V. A programmable gain of 1,2,4,8,16,32 and 64. The DNx-AI-217 board provides both open input detection functionality as well as overvoltage detection.
The card has an overvoltage protection ± 40 V powered or not.
Software and drivers
The UEIDAQ Framework library uses the same API to access all devices of the DNx distributed cards. Using the UEIDAQ Framework library significantly reduces the amount of code required to perform data acquisition and control applications. UEI supports all 32/64 bit versions of Windows up to the most recent version of Windows 10. The UEIDAQ Framework provides a set of C ++ classes to easily interface your C ++ programs with acquisition devices UEI data. The UEIDAQ Framework also comes with an ANSI-C API. Instantly download Windows software and drivers for PowerDNA / DNR hardware from the UEI. Includes UEIDAQ Framework library, which supports the following software: VisualBASIC 6, VB.NET, LabVIEW, MATLAB, LabWindows / CVI, OPC server, Excel, .NET, C #, C / C ++, Borland Delphi, Borland C ++ Builder.
Depending on the reception station, the card references will be:
– DNA-AI-217 for Cubes

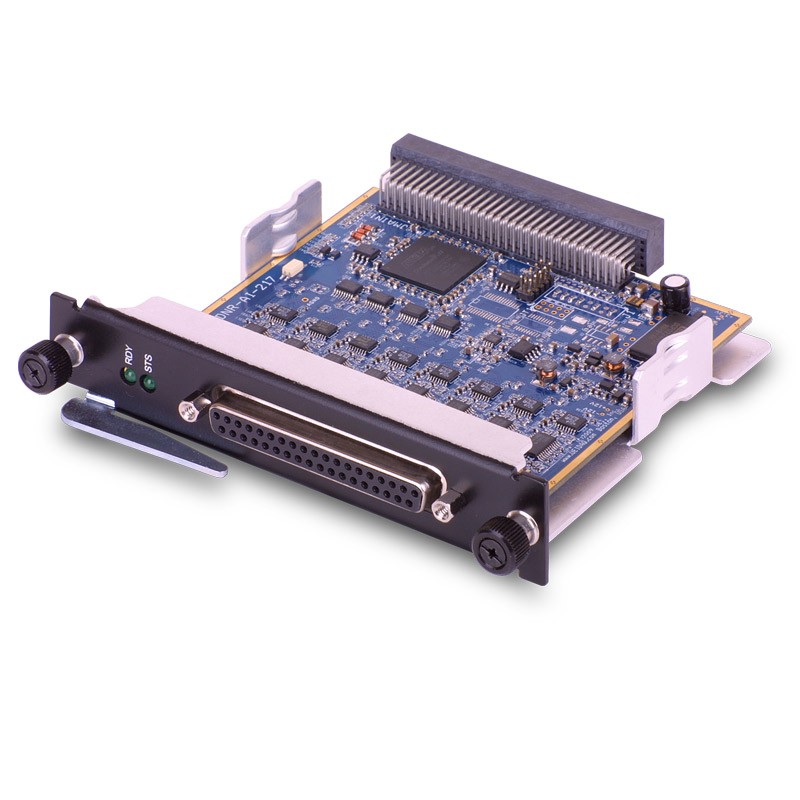

– DNR-AI-217 for Racks
– DNF-AI-217 for the FLATRACK
Card usable with the UEILogger.
