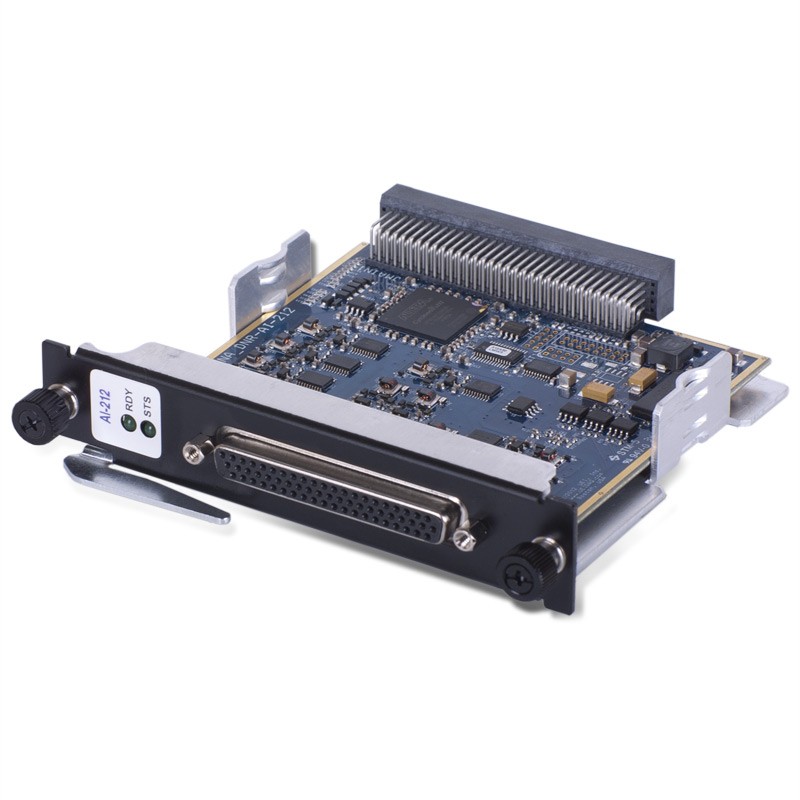

UEI card DNx-AI-212 24-bit isolated Thermocouple 18Ks/s for all channels
Technical specifications
The UEI manufacturer’s board, DNX-AI-212 is a Thermocouple analog acquisition board (J, K, T, S, E, R) 12 isolated differential channels with maximum sampling of 18Ks/s for all channels , with a resolution of 24 bits and an input range of + – 2.048 V. A programmable gain of 1,2,4,8,16,32 and 64. 350 VDC / Vrms isolation between channel and between channel and chassis . The card has ± 40V surge protection, 2000V ESD powered or not.
Software and drivers
The UEIDAQ Framework library uses the same API to access all devices of the DNx distributed cards. Using the UEIDAQ Framework library significantly reduces the amount of code required to perform data acquisition and control applications. UEI supports all 32/64 bit versions of Windows up to the most recent version of Windows 10. The UEIDAQ Framework provides a set of C ++ classes to easily interface your C ++ programs with acquisition devices UEI data. The UEIDAQ Framework also comes with an ANSI-C API. Instantly download Windows software and drivers for PowerDNA / DNR hardware from the UEI. Includes UEIDAQ Framework library, which supports the following software: VisualBASIC 6, VB.NET, LabVIEW, MATLAB, LabWindows / CVI, OPC server, Excel, .NET, C #, C / C ++, Borland Delphi, Borland C ++ Builder.
Depending on the reception station, the card references will be:
– DNA-AI-212 for Cubes
– DNR-AI-212 for Racks
– DNF-AI-212 for the FLATRACK
Card usable with the UEILogger.
