Main features
  • 4 Independent 24-bit input channels
  • 125 KSPS maximum sample rate (each channel)
  • Digital anti-aliasing filter provides 100 dB attenuation
  • 350 VDC channel to channel isolation
  • 0 to 8 mA excitation, user selectable in 256 steps
  • Status LEDs indicate open or shorted sensors
  • 10-32 UNF coaxial connections provided by DNA-ACC-211 (included with purchase)
  • 6.75 W, max (Cubes should include DNA-FAN option if mulitple AI-211s are installed)

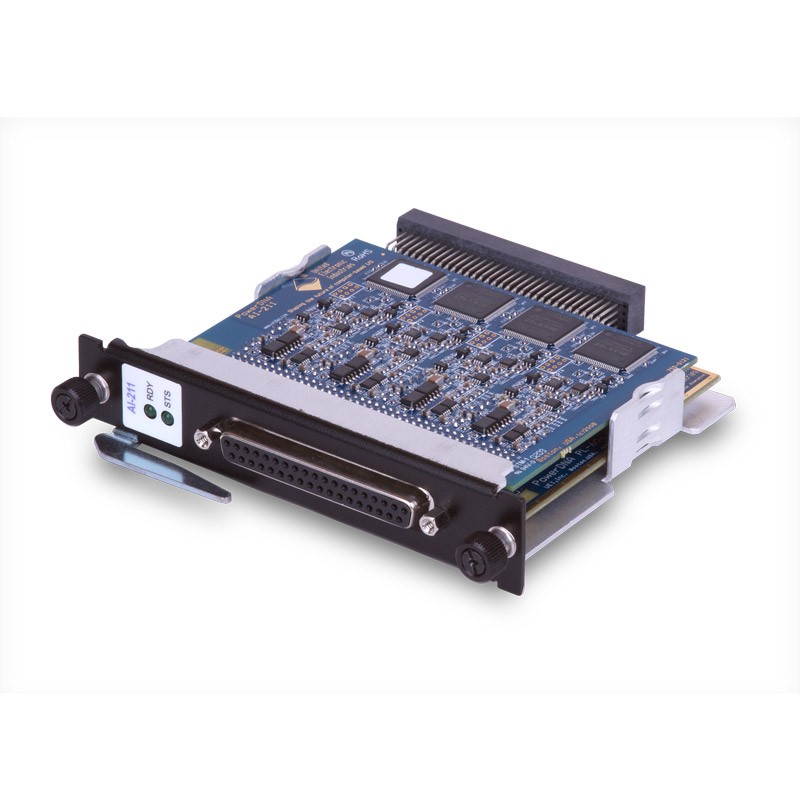

UEI card DNx-AI-211 24-bit 125Ks/s 4-channels

Technical specifications

The UEI manufacturer’s card ,DNX-AI-211 is an analog acquisition with 4 simultaneous differential channels for ICP / IEIP sampling measurement of 125Ks/s per channel, with a resolution of 24 bits. It will sample all four channels up to their maximum 125 ks/s (maximum card rate 500 ks/s). The DNx-AI-211 card offers high accuracy with a signal to noise ratio (SNR) of 110 dB at 1 ks/s at 97 dB at125 ks/s.

Software and drivers

The UEIDAQ Framework library uses the same API to access all devices of the DNx distributed cards. Using the UEIDAQ Framework library significantly reduces the amount of code required to perform data acquisition and control applications. UEI supports all 32/64 bit versions of Windows up to the most recent version of Windows 10. The UEIDAQ Framework provides a set of C ++ classes to easily interface your C ++ programs with acquisition devices UEI data. The UEIDAQ Framework also comes with an ANSI-C API. Instantly download Windows software and drivers for PowerDNA / DNR hardware from the UEI. Includes UEIDAQ Framework library, which supports the following software: VisualBASIC 6, VB.NET, LabVIEW, MATLAB, LabWindows / CVI, OPC server, Excel, .NET, C #, C / C ++, Borland Delphi, Borland C ++ Builder.

Depending on the reception station, the card references will be:

– DNA-AI-211 for Cubes
– DNR-AI-211 for Racks
– DNF-AI-211 for the FLATRACK

Card usable with the UEILogger.
