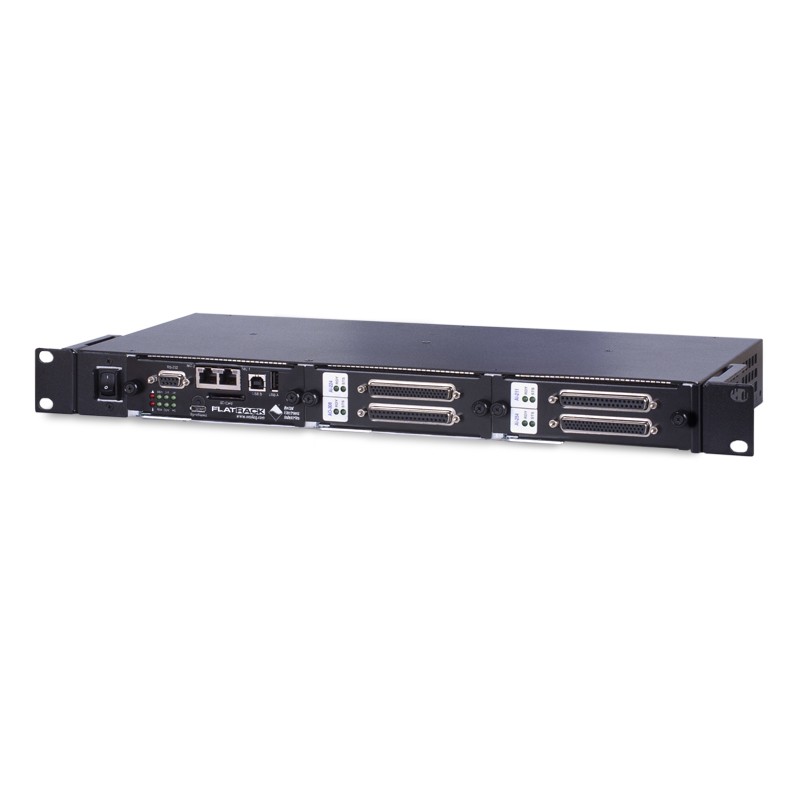

DNF-4-1G - FLATRACK™ Ethernet I/O DAQ Platform, 4-slot

DNF-4-1G - FLATRACK™ Ethernet I/O DAQ Platform, 4-slot
Clear
Main features
  • Accommodates installation of up to four I/O boards
  • Complete DAQ interface to any input/output/sensor type
  • Standard rack-mountable 1U chassis: 6.0 x 1.75” x 17.5”
  • Accommodates up to four I/O front-loading I/O boards
  • Compatible with >50 interchangeable I/O boards
  • Two independent Gigabit (1000/100/10Base-T) Ethernet Interfaces
  • Inter-RACK and multiple RACK sync Interface
  • AC or DC powered version
  • Rugged: 3 g Vibration, 50 g Shock, -40 to +70°C
  • Real-time: 1,000 I/O scans in <1 millisecond
  • Complete Windows, Linux and RTOS support
  • LabVIEW,™ MATLAB®, DASYLab,™ and Simulink support and more
  • LabVIEW™, MATLAB®, DASYLab™ support and more
DNF-4-1G-AC FLATRACK™ Ethernet I/O DAQ Platform—AC Powered
DNF-4-1G-DC FLATRACK™ Ethernet I/O DAQ Platform—DC Powered

The DNF-4-1G is a compact, rugged and highly integrated Ethernet I/ O data acquisition platform. Its 1U FLATRACK form-factor provides a low-profile footprint for space-constrained applications that require up to four I/O boards per chassis. The platform is ideal for applications in which point-to-point signal conditioning and patch panel connections can be avoided. Its backplane electronics are identical to UEI’s popular PowerDNR RACKtangle series. The DNF-4-1G series provides two Gigabit Ethernet (100/10 Base-T compatible) interfaces and front-loading slots for quick and easy implementation and configurability. These capabilities enhance usability, improve performance and simplify I/O reconfiguration. The backplane within the rack contains no active electronic components, ensuring that the platform delivers high availability (maximum MTBF and minimum MTTR) in mission-critical applications.
