DN2.66X Serie - 16 bit Arbitrary Waveform Generator LXI

DN2.66X Serie - 16 bit Arbitrary Waveform Generator LXI
Clear
Main features
  • 625 MS/s on 2/4/8 channels or 2/4 channels 1.25 GS/s
  • Fast 16 bit arbitrary waveform generator
  • Simultaneous signal generation on all channels
  • Output level ±160 mV to ±5 V (625 MS/s) or ±4 V (1.25 GS/s) into High Impedance
  • Output level ±80 mV to ±2.5 V (625 MS/s) or ±2.0 V (1.25 GS/s) into 50 Ohm
  • Fixed trigger to output delay
  • Single-Shot, Loop, Gated, Sequence Mode
  • Marker Output, Digital Outputs
  • Synchronization of up to 8 cards
  • GBit Ethernet/LXI compatible instrument
  • Easy connectivity with BNC/SMA connections
  • SBench 6 Professional included
  • Direct remote access from Workstations or Laptops
  • Simple integration into the factory LAN

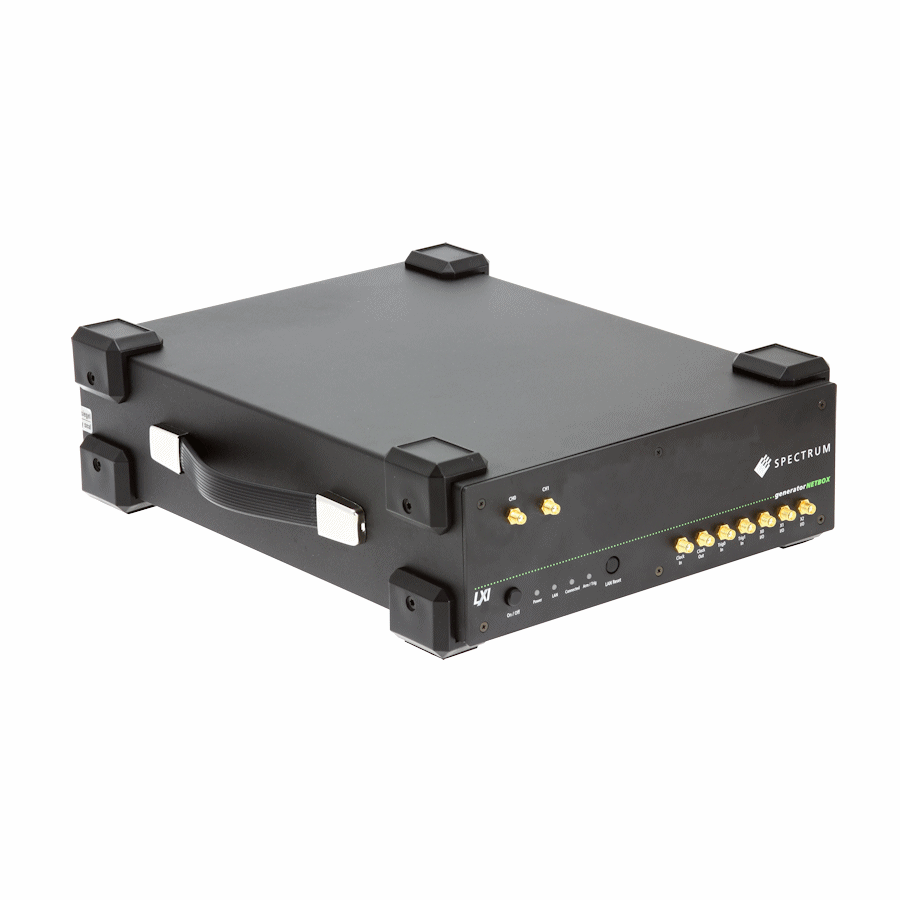

DN2.662-02 LXI Generator 2 channels 625 Ms/s 16 bits
DN2.662-04 LXI Generator 4 channels 625 Ms/s 16 bits

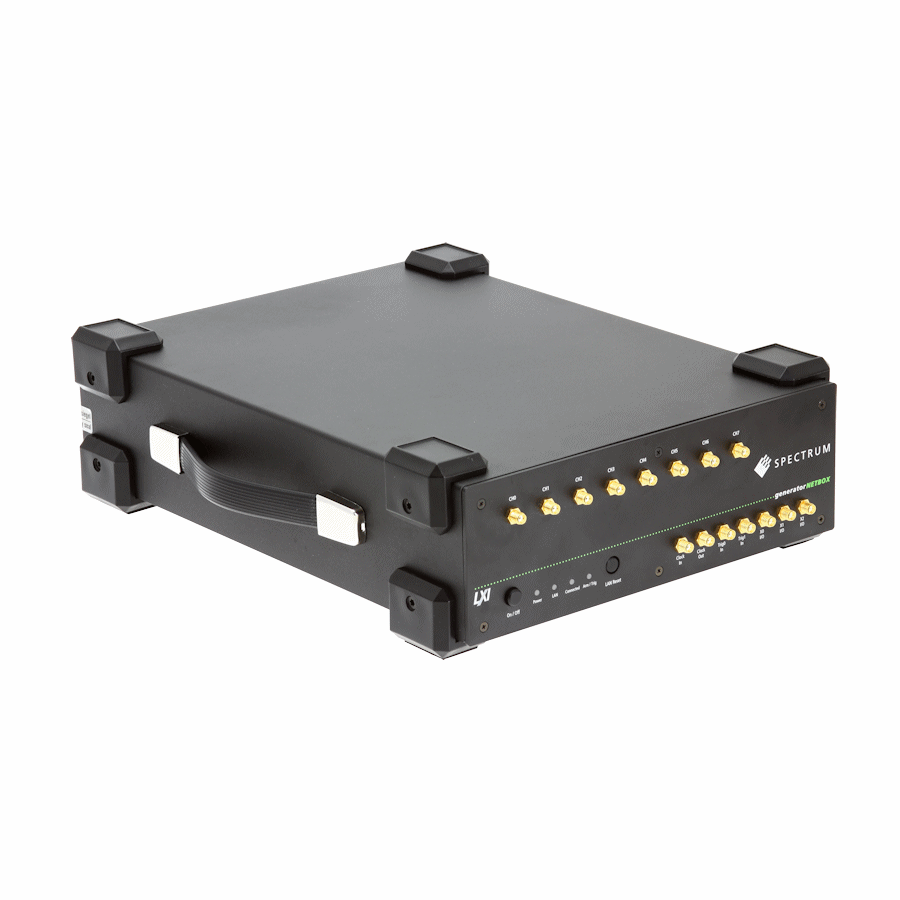

DN2.662-08 LXI Generator 8 channels 625 Ms/s 16 bits
DN2.663-02 LXI Generator 2 channels 1.25 Gs/s 16 bits
DN2.663-04 LXI Generator 2 channels 1.25 Gs/s 16 bits

The generatorNETBOX DN2.66x arbitrary waveform generators (AWG) deliver the highest performance in both speed and resolution. The series includes LXI units with either two, four or eight synchronous channels. The large onboard memory can be segmented to replay different waveform sequences.
The digitizerNETBOX and generatorNETBOX offer a powerful GBit Ethernet connection and are fully LXI compatible. The netbox can be used as tabletop instrument or 19″ rack mount operation. It can be connected anywhere in your LAN or directly point-to-point with your Laptop/Workstation. A full option package and software package including SBench 6 Professional is included. The first data acquisition can be done within minutes: connect power + ethernet + signals, swicth on, install software on client PC, detect the digitizerNETBOX/generatorNETBOX with Discovery, start SBench 6, do the first acquisition
