| DAQe-2204 | 64-CH 12-Bit 3 MS/s Multi-Function DAQ PCie Card | |
| DAQe-2205 | 64-CH 16-Bit 250 kS/s Multi-Function DAQ PCie Card | |
| DAQe-2206 | 64-CH 16-Bit 500 kS/s Multi-Function DAQ PCIe Card |

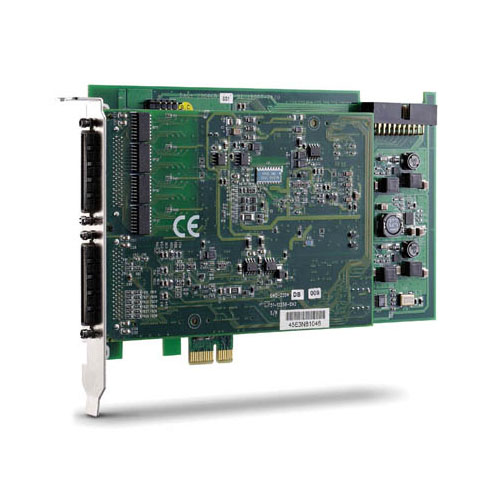

DAQe-2200 Series - 64-CH 12/16-Bit Up to 3 MS/s Multi-Function DAQ PCIe Cards
Main features
- x1 lane PCI Express® Interface
- 64-CH single-ended or 32-CH differential analog inputs
- Onboard 1 k-sample A/D FIFO
- Bipolar or unipolar analog input ranges
- Programmable gains: x1, x2, x4, x5, x8, x10, x20, x40, x50, x200 (DAQe-2204); x1, x2, x4, x8 (DAQe-2205 & DAQe-2206)
- 512-configuration channel gain queue
- 2-CH 12-bit multiplying analog outputs with waveform generation
Datasheet
ADLINK’s DAQe-2204, DAQe-2205 and DAQe-2206 are high-density and high-performance multi-function DAQ cards. These devices can sample up to 64 AI channels with different gain settings and scan sequences, making them ideal for dealing with high-density analog signals with various input ranges and sampling speeds. These devices also offer differential mode for 32 AI channels inorder to achieve maximum noise elimination.
The DAQe-2200 series also feature analog and digital triggering, 2-CH 12-bit analog outputs with waveform generation capability, 24-CH programmable digital I/O lines, and 2-CH 16-bit general-purpose timer/counter. Like all the other members in the DAQe-2200 family, the PDAQe-2200 is able to perform the analog input and output functions at full speed simultaneously and multiple cards can be synchronized through the SSI (System Synchronization Interface) bus. The auto-calibration functions adjust the gain and offset to within specified accuracies such that you do not have to adjust trimpots to calibrate the cards.
