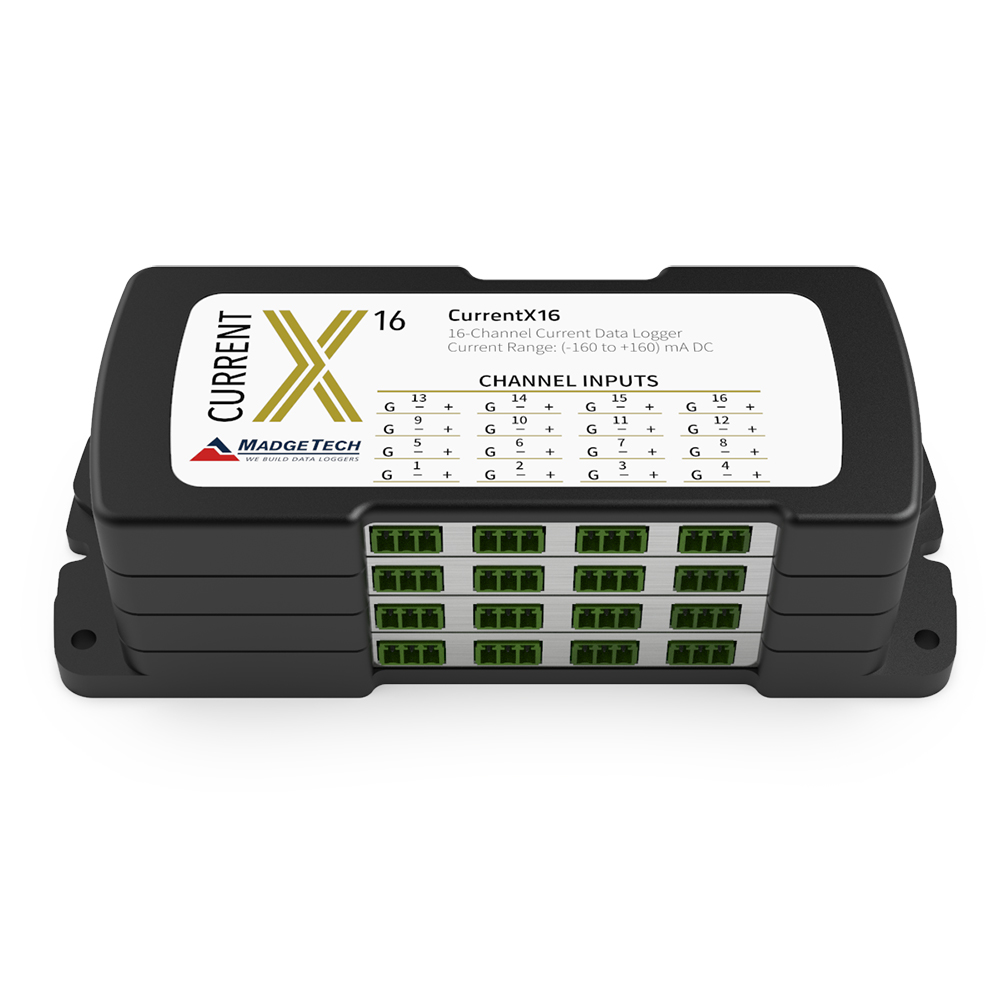

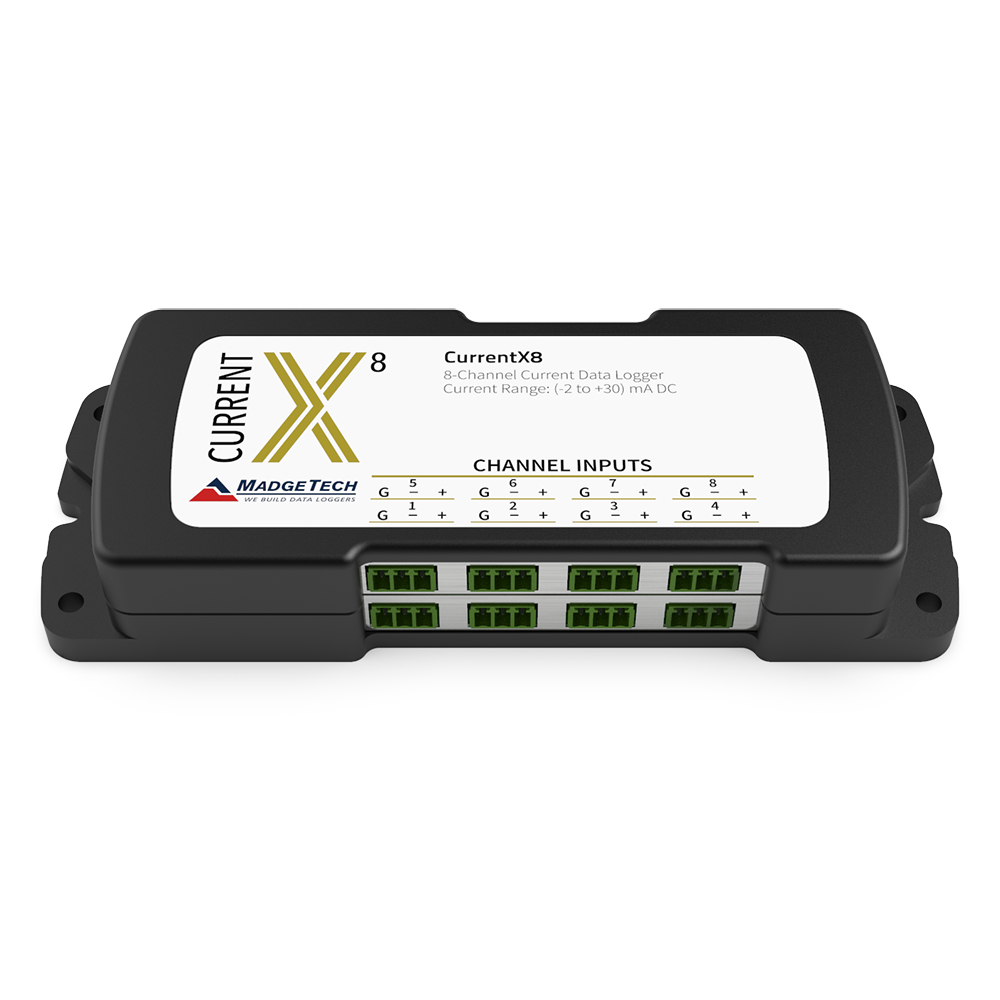

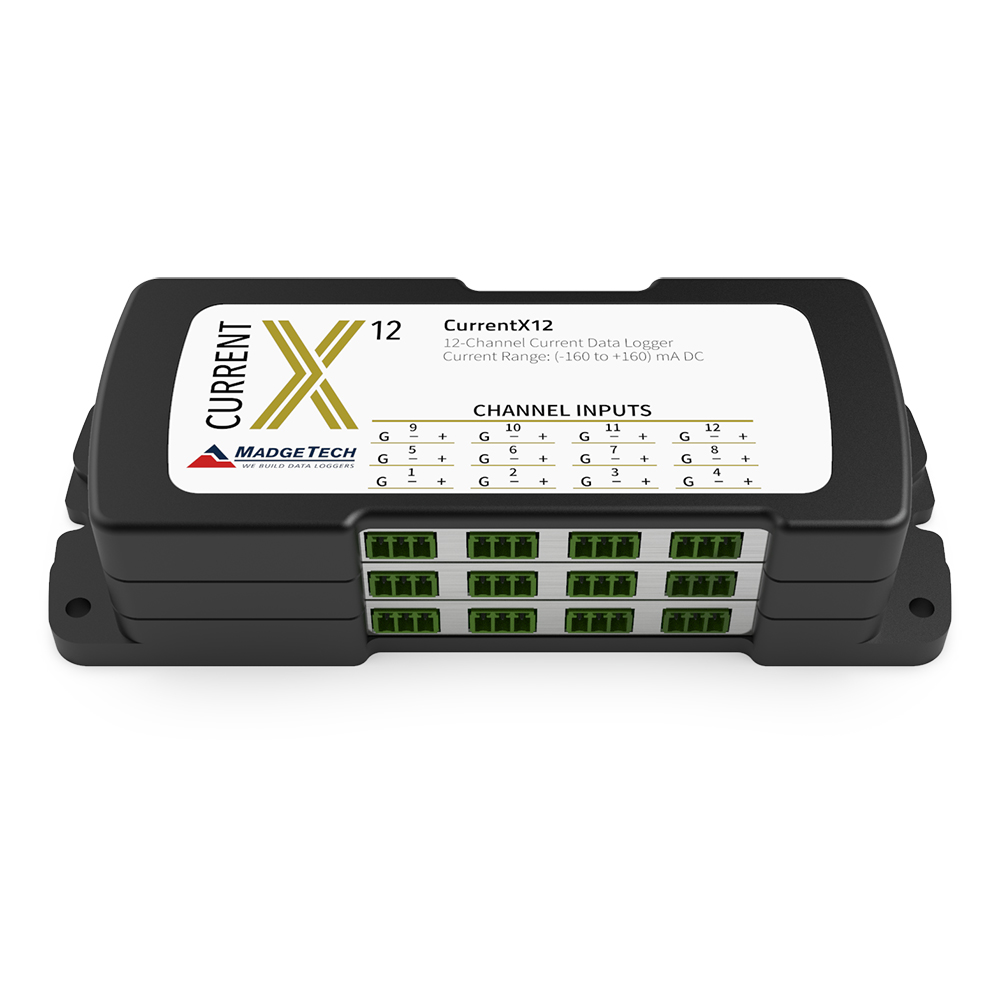

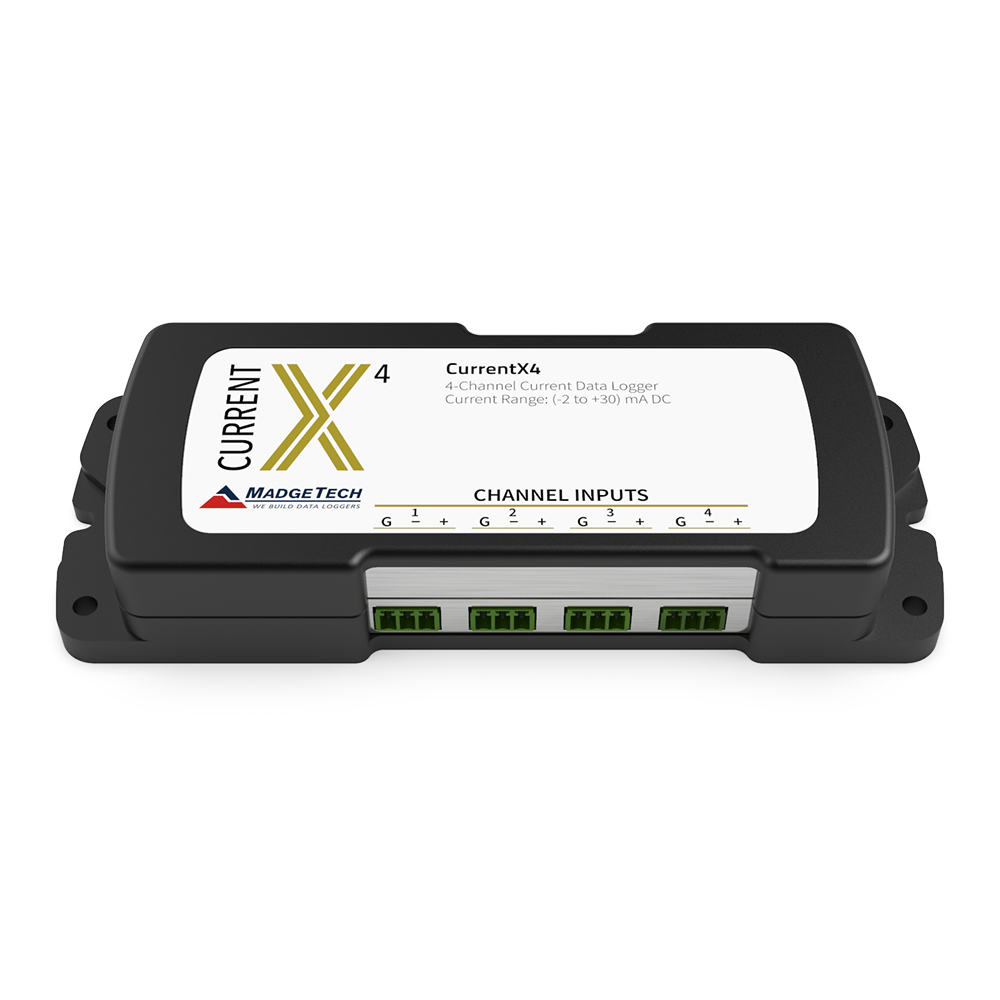

CurrentX Series - Autonomous current recorder 4, 8, 12; 16 channels (30mA - 160mA - 3A)

CurrentX Series: MadgeTech 30 mA to 3 A Current Loggers with 4, 8, 12 and 16 inputs

The new CurrentX series from MadgeTech offers a range of 4, 8, 12 and 16 channel current loggers with an acquisition rate of up to 4Hz. It covers currents from 30mA to 3A. These loggers have 16 bit resolution and the programmable measurement rate ranges from 4 measurements per second to one measurement per day.

Powered by a battery (easily replaceable), this logger has a typical operating autonomy of 18 months.

The following improvements can be noted: removal of the specific interface in favor of a standard cable (USB-A, micro USB), increase in data transfer speed and memory capacity which reaches more than 4 million points storage for all channels used:

4-channels: 1,048,064 measurements per channel

8-channels: 524,032 measurements per channel

12-channels: 349,354 measurements per channel

16-channels: 262,016 measurements per channel

A 10-character field will name each channel, thus facilitating data analysis. Combined with the Madgetech4 software, this new series of recorders will allow you to easily record, analyze your measurements and export directly to Excel.

Madgetech loggers are delivered with a calibration certificate. The metrology laboratory is certified:  ISO/IEC:17025
