ADLINK’s cPCI-9116 series are high-density and high-resolution multi-function DAQ cards for PXI/CompactPCI form factors. The devices can sample up to 64 AI channels with different gain settings and scan sequences, making them ideal for dealing with high-density analog signals with various input ranges and sampling speeds. The cPCI-9116 devices feature flexible configurations on analog inputs. They provide analog inputs with 4 programmable input ranges for both bipolar and unipolar inputs. The A/D on the cPCI9116 devices features a sampling rate of up to 250 kS/s with resolution at 16 bits. These devices also offer differential mode for 32 AI channels in order to achieve maximum noise elimination.
The cPCI-9116 series also feature 1-CH 16-bit general purpose timer/counter, 8-CH TTL digital inputs, and 8-CH TTL digital outputs.

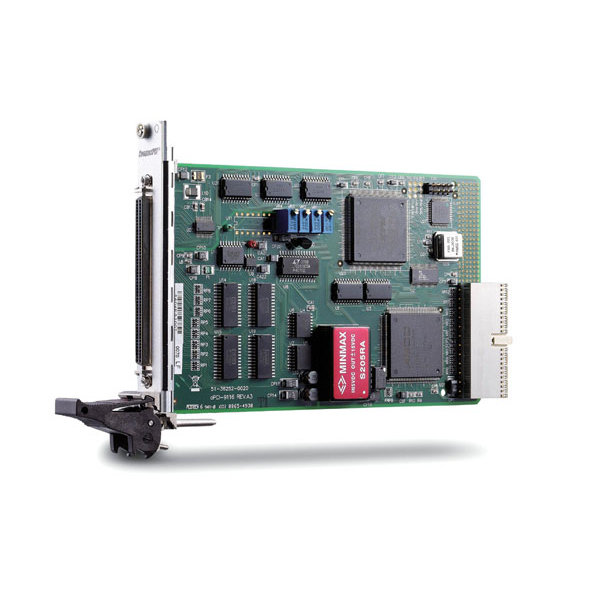

cPCI-9116 - 64-CH 16-Bit 250kS/s Multi-Function DAQ cPCI Card
Main features
- PICMG 2.0 Rev 2.1
- 16-bit A/D and sampling rate up to 250kS/s
- 64-CH single-ended or 32-CH differential input
- On-board 1k-sample A/D FIFO
- Programmable gains of x1, x2, x4, x8
- 512-configuration channel-gain queue
- Bus-mastering DMA for analog inputs
- 8-CH TTL digital inputs and 8-CH TTL digital outputs
