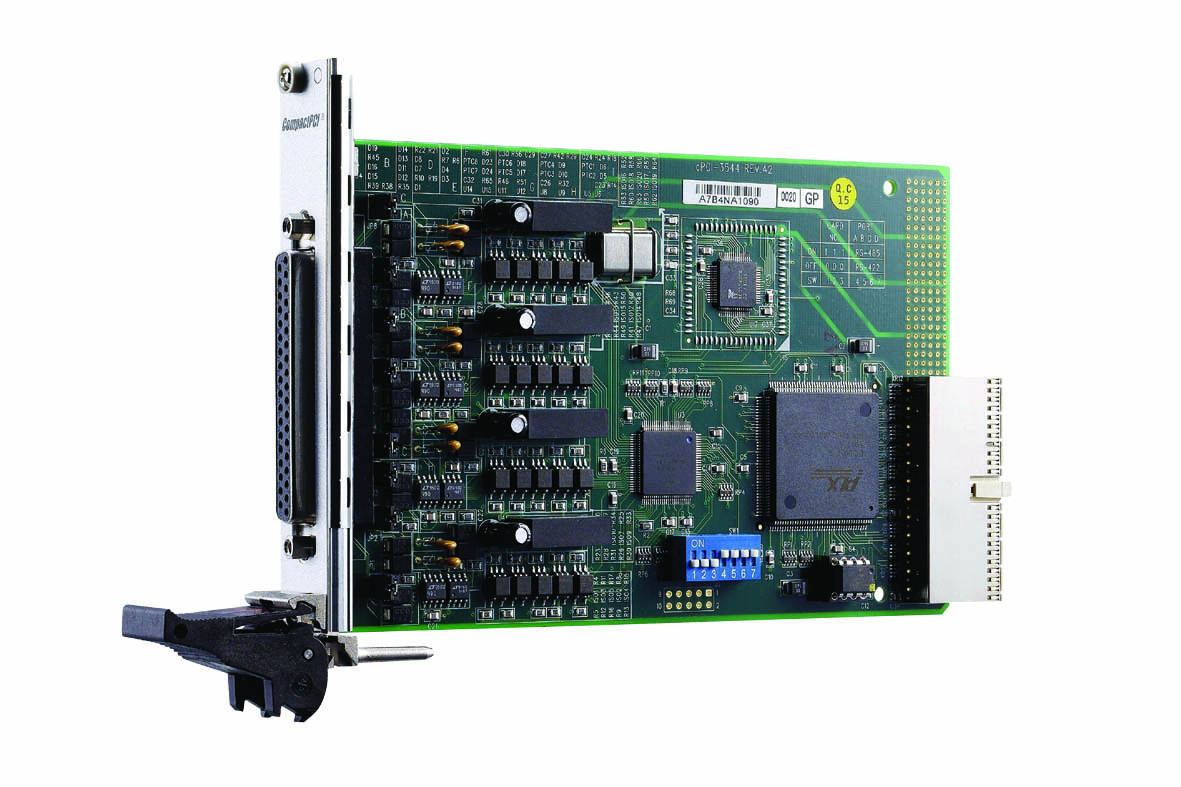

cPCI-3544 - 4-Port RS-422/485 Isolated Serial Communications Card

cPCI-3544 - 4-Port RS-422/485 Isolated Serial Communications Card
Clear
Main features
  • 32-bit CompactPCI®, PICMG® 2.0 Rev 2.1
  • Plug-and-play, IRQ & I/O address automatically assigned by PCI BIOS
  • Four asynchronous communications ports with intelligent buffer
  • Four RS-422/485 ports
  • 2500 VRMS isolation voltage
  • Supports multiple OS
  • Surge protectors
  • Rugged DB37 connector
cPCI-3544 Isolated 4-port RS-422/RS-485 serial communications module
cPCI-3544R Isolated 4-port RS-422/RS-485 serial communications module with rear I/O support

The cPCI-3534 is an enhanced four ports serial communication module used for Compact-PCI platform. It includes a PGA (Programmable Gate Array) to support the serial communication controller and a 37-pin connector to connect external I/O port from the front panel or using the rear IO.

The expansion cable has four standard DB25 or DB9 connectors and one DB37 connector to connect with cPCI-3534 interface card.

The cPCI-R3534 transition board can support rear I/O connection by using one DB37 connector.
