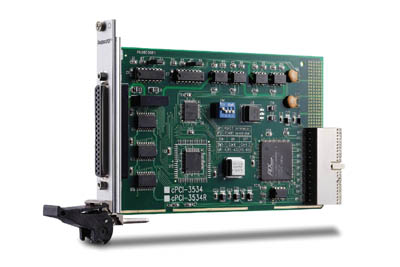

cPCI-3534/3538-S - The cPCI-3534 is an enhanced four ports serial communication module used for Compact-PCI platform. It includes a PGA (Programmable Gate Array) to support the serial communication controller and a 37-pin connector to connect external I/O port from the front panel or using the rear IO. The expansion cable has four standard DB25 or DB9 connectors […]
Main features
- 32-bit CompactPCI, PICMG 2.0 Rev 2.1
- Plug-and-play, IRQ & I/O address automatically assigned by PCI BIOS
- 4/8 asynchronized communications ports with intelligent buffer
- Three RS-232 ports and one isolated RS-422/RS-485 port with 2500 VRMS isolation voltage for cPCI-3534, and eight RS-232 ports for cPCI-3538-S
- Surge protector in TXD/RXD signal line
- Supports up to 2 cards per system, and multiple OS
- Rugged DB-37 connector for cPCI-3534, and DB-62 connector for cPCI-3538-S
- Suitable for modems, data display, data collection, telecommunications
The cPCI-3534 is an enhanced four ports serial communication module used for Compact-PCI platform. It includes a PGA (Programmable Gate Array) to support the serial communication controller and a 37-pin connector to connect external I/O port from the front panel or using the rear IO.
The expansion cable has four standard DB25 or DB9 connectors and one DB37 connector to connect with cPCI-3534 interface card.
The cPCI-R3534 transition board can support rear I/O connection by using one DB37 connector.
The cPCI-3538 is an enhanced eight ports serial communication card used for cPCI platform. It includes a PGA (Programmable Gate Array), which supports the serial communication controller, and a 62-pin connector which connects external I/O port on the front panel or the rear I/O.
The expansion cable has eight standard DB25 connectors and one DB62 connector to connect to cPCI-3538 interface card. User may also use one DB62 to DB62 cable to connect between one cPCI-3538 and C588XB for providing 8 channel isolated RS-232/422/485 interface.
The cPCI-R3538 transition board can support rear I/O connection by using one DB62 connector.
