| AXC8566 | SMU 2400 A / 50 V maximum | |
| AXC8546 | SMU 1200 A / 50 V maximum | |
| AXC8526 | SMU 600 A / 50 V maximum | |
| Option NON-ISOL | Non-isolated device | |
| Option HIGH-ISOL | Isolated device by gas discharge tube | |
| Déclencheur d’option | Hardware Trigger I/O | |
| Option FE | Front touch display |

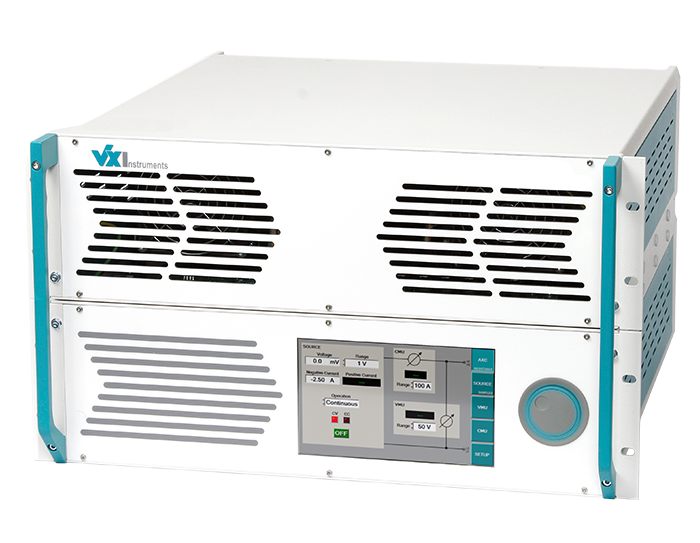

AXC85xx - High Current SMU 600/1200/2400 A
Main features
- Output current up to 2 400 A pulse mode
- Programmable output voltage up to 50 V
- Pulse width starting at 300 μs
- Extremely low noise with linear output stage
- Programable current pulse
- Integrated current and voltage measurement unit
- Sampling function for current and voltage measurement
- Integrated LAN interface
- Front touch display
- Hardware trigger I/O
AXC85xx : High Current SMU 600/1200/2400 A
The potential-free high-current SMUs of the AXC family are characterized by their very fast, low-noise analogue power amplifiers. This allows fully regulated current pulses to be realized under one millisecond at a peak current of 600/1200/2400 A.
Functions such as the start of a pulse can be activated by hardware triggers and thus guarantee very short response times. The throughput in the test procedure is significantly increased and at the same time less energy is introduced into the component to be tested. This leads to less heating in the component itself, which is crucial, for example, for the test of bare dies.
The extremely compact design of the devices in 19“ format with only 6 U saves space in the test system.
