AXC7585
Clear
Main features
  • Output current up to 1600 A in pulse mode
  • Programmable output voltage up to 30 V
  • Pulse length starting at 300 µs
  • Extremely low noise with linear output stage
  • Programmable current pulse
  • Integrated current measurement unit
  • Integrated voltage measurement unit
  • Integrated LAN, GPIB and USB interface
  • Front touch display available
  • Optional: integrated isolated voltage measurement unit
AXC7585 1600 A / 30 V maximum
Option VMU-ISOL Isolated VMU on request
Option NON-ISOL Non-isolated device
Option HIGH-ISOL Isolated device by gas discharge tube
Option FE Front touch display
Option RMK 19" rack mounting kit

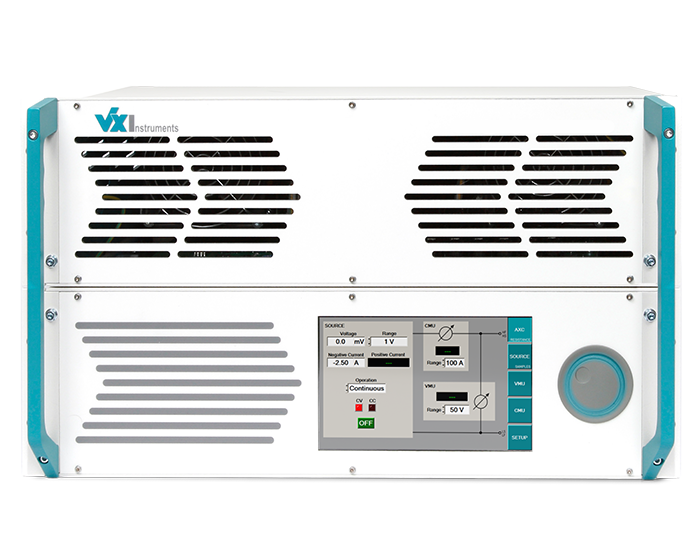

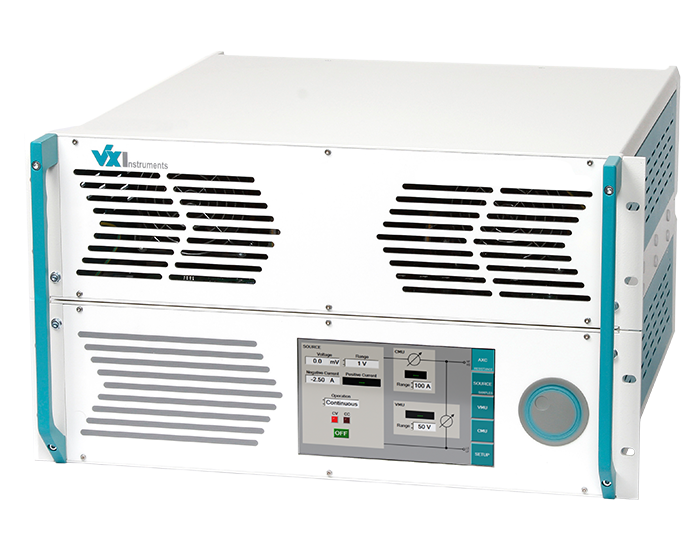

AXC7585 : High Current SMU 1600 A

The potential-free high-current SMUs of the AXC family are characterized by their very fast, low-noise analogue power amplifiers. This allows fully regulated current pulses to be realized under one millisecond at peak currents up to 1,600 A.

Functions such as the start of a pulse can be activated by hardware triggers and thus guarantee very short response times. The throughput in the test procedure is significantly increased and at the same time less energy is introduced into the component to be tested. This leads to less heating in the component itself, which is crucial, for example, for the test of bare dies.

The extremely compact design of the devices in 19“ format with only 6 U saves space in the test system.
