ATST146 - 2 channels digitizer 125 Ms/s 14 bits with Thunderbolt 3 interface

ATST146 - 2 channels digitizer 125 Ms/s 14 bits with Thunderbolt 3 interface
Main features
  • Thunderbolt™ 3 (USB type C) interface to the host computer — No embedded PC required!
  • 125 MS/s Real Time Sampling per channel
  • 2 channels sampled simultaneously
  • 14 bit A/D resolution
  • Up to 128 Million samples of on-board acquisition memory per channel
  • Thunderbolt 4 compatible
  • Continuous Streaming Mode
  • External clock from 125 MHz to 1 MHz
  • Up to 65 MHz full power bandwidth
  • ±20 mV to ±10 V Input Range
  • NIST- or CNRC-Traceable Calibration

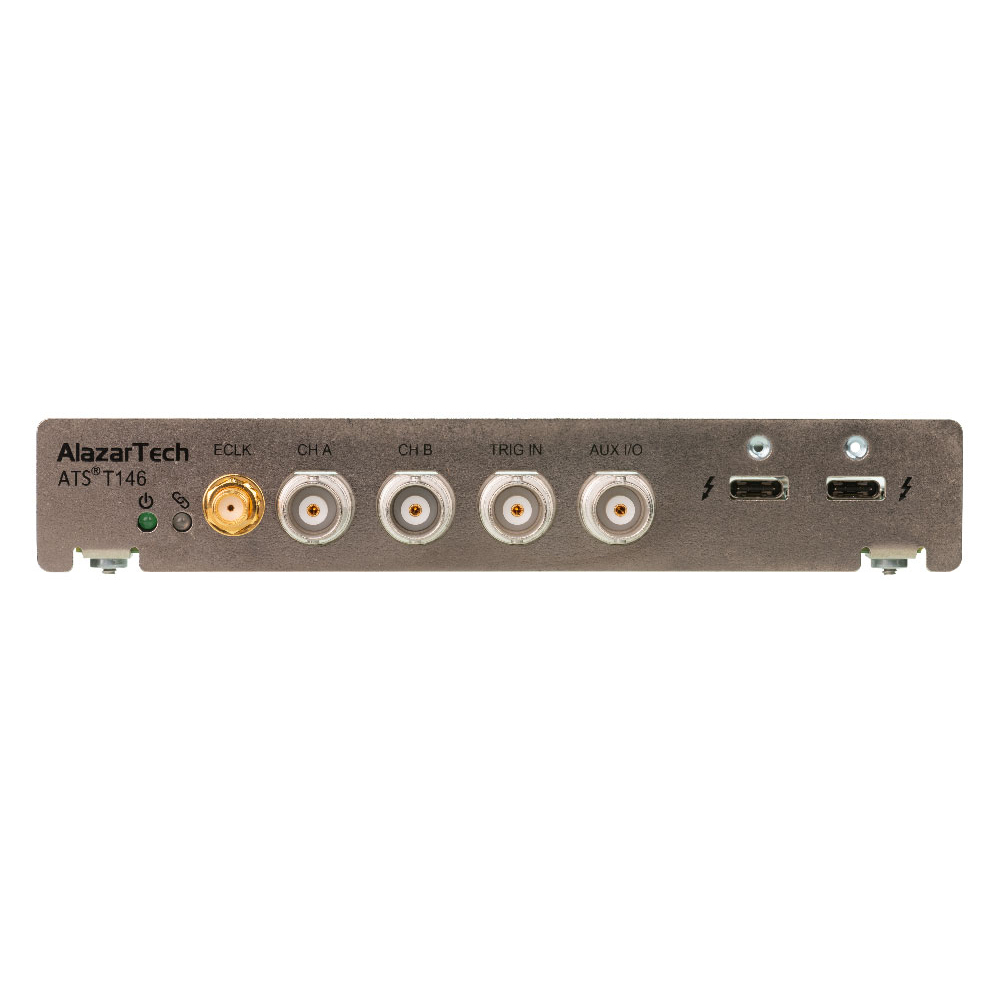

  • Trigger Input & Auxiliary I/O connectors
  • Includes Thunderbolt 3 cable with single screw-lock for industrial-level ruggedness

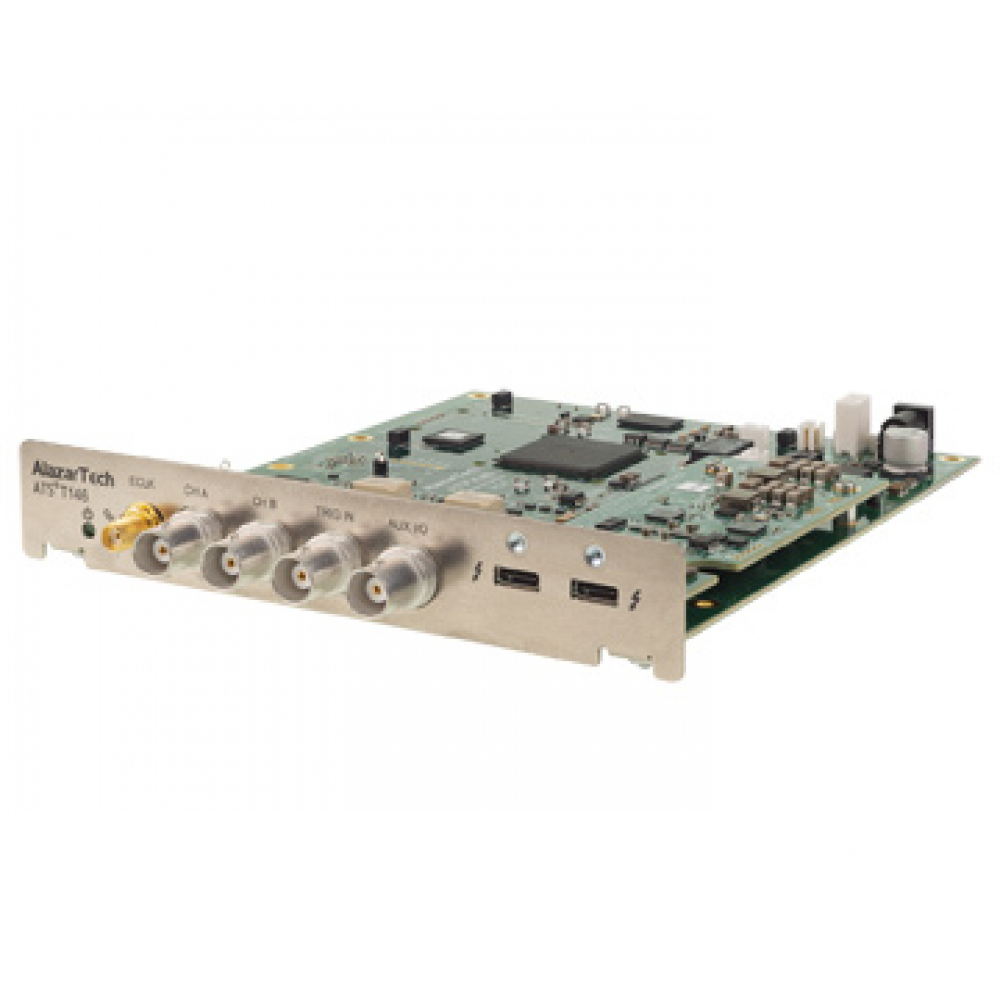

  • OEM version without enclosure available for integration into your product
  • AlazarDSO Software allows quick start-up
  • SDK for C++/C#, Python, MATLAB, and LabVIEW
  • Support for Windows, Linux, and macOS

ATST146 : 2 channels digitizer 125 Ms/s 14 bits with Thunderbolt 3 interface

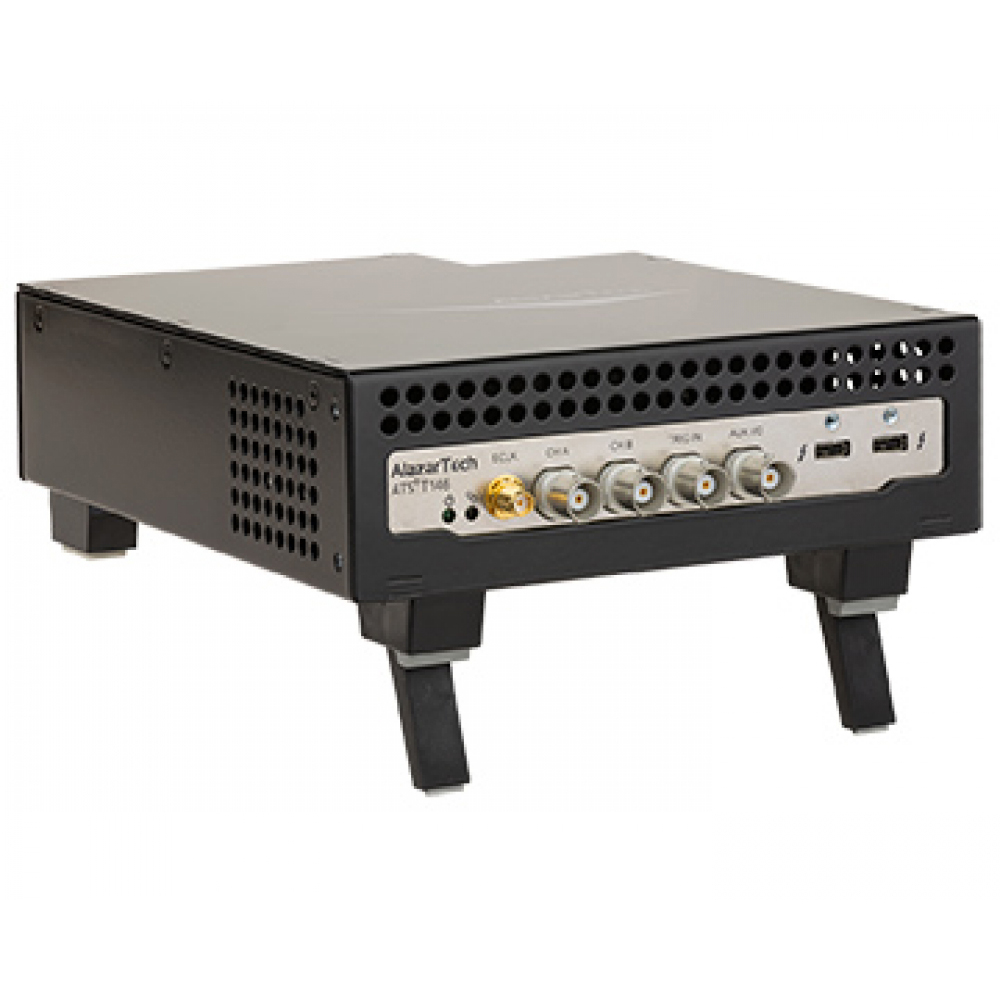

ATST146 is a 2-channel, 14-bit, 125 MS/s Thunderbolt 3 waveform digitizer capable of storing up to 128 Million samples per channel of acquired data in its on-board memory or streaming acquired data to motherboard memory. ATST146 is an ideal solution for many applications.

Any code developed for the AlazarTech ATS®9146 can be ported seamlessly to ATST146.

ATST146 interfaces to the host computer using the Thunderbolt 3 bus that runs at 40 Gbps.
