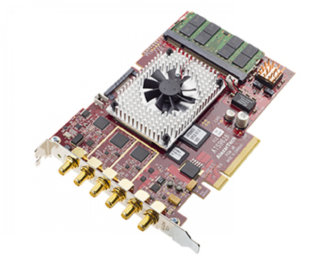

ATS9626 : PCI Express digitizer card, 2 channel, 250 Ms/s 16-bit, DC coupling
AlazarTech ATS®9626 is an 8-lane PCI Express (PCIe x8), dual-channel, high-speed, 16-bit, 250 MS/s waveform digitizer card with DC-coupled inputs capable of streaming acquired data to PC memory at rates up to 1.6 GB/s or storing it in its deep onboard dual-port acquisition memory buffer of up to 2 Gigasamples.
The on-board Coprocessor FPGA is an Altera Stratix III device with on-chip memory, hardware multipliers, DSP blocks and a fast fabric that allows both integer based and floating-point digital signal processing. All data acquired by the on-board A/D converters flows through the Coprocessor FPGA.
The main difference between ATS9626 and ATS9625 is input coupling: ATS9626 provides dc coupling, whereas ATS9625 provides ac coupling.
ATS9626 is supplied with AlazarDSO software that lets the user get started immediately without having to go through a software development process. Users who need to integrate the ATS9626 in their own program can purchase a software development kit, ATS-SDK, for C/C++, C#, Python, MATLAB and LabVIEW for both Windows and Linux operating systems.
All of this advanced functionality is packaged in a low power, half-length PCI Express card.
