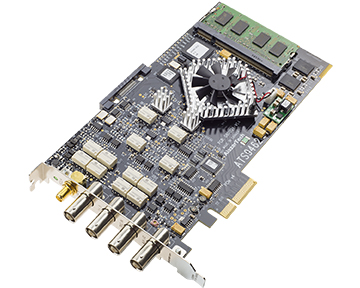

ATS9462 - PCI Express digitizer board, 2 channels 180 Ms/s, 16 bit

ATS9462 - PCI Express digitizer board, 2 channels 180 Ms/s, 16 bit
Main features
  • 180 MS/s Real Time Sampling per channel
  • Up to 512 Megasamples of on-board acquisition memory
  • 720 MB/s data throughput to PC memory
  • 2 Channels sampled at 16 bit resolution
  • 65 MHz full power bandwidth
  • ±200 mV to ±16 V Input Range
  • 73.9 dB Signal to Noise Ratio
  • NIST Traceable Calibration
  • Continuous Streaming Mode
  • Trigger Input & Trigger Output connectors
  • ¾-Length PCIe x4 Card
  • AlazarDSO Software allows quick start-up
  • SDK for C/C++, C#, Python, MATLAB, and LabVIEW
  • Support for Windows & Linux

ATS9462 : PCI Express digitizer board, 2 channels 180 Ms/s, 16 bit

AlazarTech ATS®9462 is a 4-lane PCI Express (PCIe x4), dual-channel, high-resolution, 16-bit, 180 MS/s waveform digitizer card capable of streaming acquired data to PC memory at rates up to 720 MB/s.

ATS9462 is available with up to 512 Megasamples of on-board, dual-port memory per channel. This memory can be used as a very deep FIFO to mitigate system latencies during sustained data transfer.

Users can capture data from one trigger or a burst of triggers. Users can also stream very large datasets continuously to PC memory or hard disk. ATS9462 allows users to build real-time data acquisition systems even under the Windows or Linux operating systems, as users are allowed to read acquired data while the next acquisition is in progress.

Users who need to integrate the ATS9462 in their own program can purchase a software development kit, ATS-SDK, for C/C++, C#, Python, MATLAB, and LabVIEW for both Windows and Linux operating systems.

All of this advanced functionality is packaged in a low-power, half-length PCI Express card.
