ATS9416 - PCI Express digitizer, 16 channels 100 MS/S 14 bit

ATS9416 - PCI Express digitizer, 16 channels 100 MS/S 14 bit
Main features
  • 100 MS/s Real Time Sampling per channel
  • 16 channels sampled simultaneously
  • 14 bit A/D resolution
  • 3.5 GB/s throughput across PCIe Gen2 x8 bus
  • External clock from 125 MHz to 5 MHz
  • Up to 65 MHz full power bandwidth
  • Wideband Input option for up to 100 MHz bandwidth
  • ±1 V or ±500 mV Input Range
  • 65 dB Signal to Noise Ratio
  • NIST Traceable Calibration
  • Continuous Streaming Mode
  • 8 Gigabytes of on-board Dual-Port Memory
  • Trigger Input & Auxiliary I/O connectors
  • Half-Length PCIe x8 Card
  • AlazarDSO Software allows quick start-up
  • SDK for C++/C#, Python, MATLAB, and LabVIEW
  • Support for Windows & Linux

ATS9416 : PCI Express digitizer, 16 channels 100 MS/S 14 bit

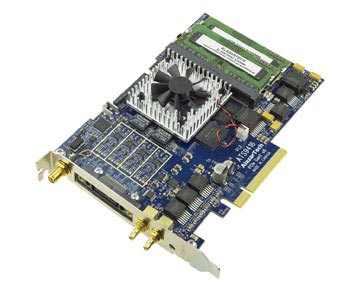

AlazarTech ATS®9416 is an 8-lane PCI Express Gen 2, 16-channel, high-speed, 14-bit, 100 MS/s waveform digitizer card capable of streaming acquired data to PC memory at rates up to 3.5 GB/s or storing it in its deep on-board dual-port acquisition memory buffer of up to 4 Gigasamples.

Each ATS9416 board has 16 Analog-to-Digital converters (ADCs) that are clocked simultaneously using a low-jitter VCO to provide absolute synchronization.

A high-density RF connector is used to increase the I/O density on the back-panel of ATS9416. Up to four ATS9416 boards can be configured as a Master/Slave system to create a simultaneous sampling system of up to 64 input channels.

ATS9416 is supplied with AlazarDSO software that lets the user get started immediately without having to go through a software development process. Users who need to integrate the ATS9416 in their own program can purchase a software development kit, ATS-SDK, for C/C++, C#, Python, MATLAB, and abVIEW® for both Windows and Linux operating systems.

All of this advanced functionality is packaged in a low-power, half-length PCI Express card.
