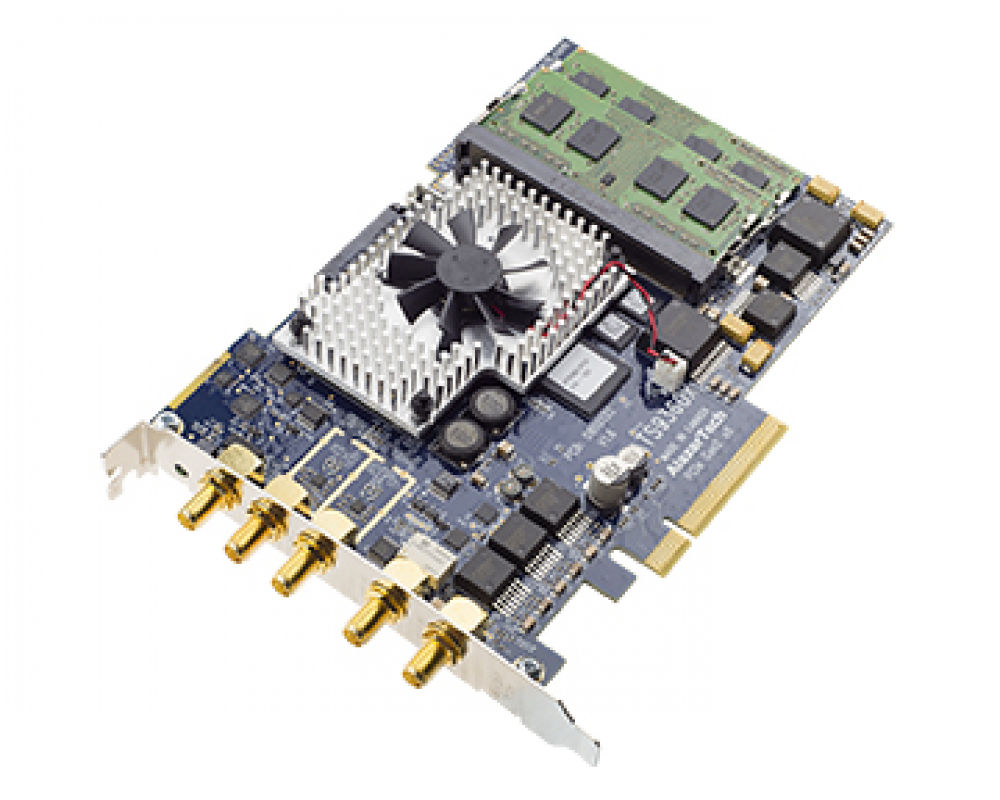

ATS9360 - PCI Express card, 2 channels digitizer, 1.8 Gs/s 12-bit

ATS9360 - PCI Express card, 2 channels digitizer, 1.8 Gs/s 12-bit
Main features
  • 1.8 GS/s Real Time Sampling per channel
  • 3.5 GB/s throughput across x8 PCIe Gen2
  • 2 Channels sampled at 12 bit resolution
  • 4096 point On-FPGA FFT Engine
  • 8 Gigabytes of on-board Dual-Port Memory
  • Variable frequency external clock capable
  • Up to 800 MHz full power bandwidth
  • Fixed ±400 mV Input Range
  • 57.1 dB Signal to Noise Ratio
  • NIST Traceable Calibration
  • Continuous Streaming Mode
  • Trigger Input & Trigger Output connectors
  • Half-Length PCIe Gen2 x8 Card
  • AlazarDSO Software allows quick start-up
  • SDK for C/C++, C#, Python, MATLAB, and LabVIEW
  • Support for Windows & Linux

ATS9360 : PCI Express card, 2 channels digitizer, 1.8 Gs/s 12-bit

ATS9360 is a fast, 12-bit waveform digitizer based on the 8-lane PCI Express Gen2 interface.

With on-FPGA FFT and boasting data throughput as fast as 3.5 GB/s (3500 MB/s) and sample rate of 1.8 GS/s across 2 simultaneous inputs, ATS9360 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.
