ATS9146 - PCI Express digitizer, 2 channels 125 MS/s 14 bit A/D

ATS9146 - PCI Express digitizer, 2 channels 125 MS/s 14 bit A/D
Main features
  • 125 MS/s Real Time Sampling per channel
  • 2 channels sampled simultaneously
  • 14 bit A/D resolution
  • Up to 128 Million samples of on-board acquisition memory per channel
  • Continuous Streaming Mode
  • External clock from 125 MHz to 1 MHz
  • Up to 65 MHz full power bandwidth
  • ±20 mV to ±10 V Input Range
  • NIST- or CNRC-Traceable Calibration
  • Trigger Input & Auxiliary I/O connectors
  • Half-Length PCIe x1 Card
  • AlazarDSO Software allows quick start-up
  • SDK for C++/C#, Python, MATLAB, and LabVIEW
  • Support for Windows & Linux

ATS9146 : PCI Express digitizer, 2 channels 125 MS/s 14 bit A/D

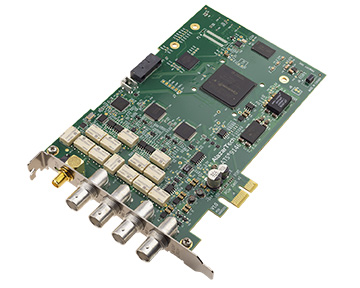

AlazarTech ATS®9146 is a dual-channel, 14-bit, 125 MS/s waveform digitizer card capable of storing up to 128 Million samples per channel of acquired data in its on-board memory or streaming acquired data to PC memory. ATS9146 is a single-lane PCI Express (PCIe x1) Gen 1 card, which supports up to 200 MB/s bus throughput.

Users can capture data from one trigger or a burst of triggers. Users can also stream very large datasets continuously to motherboard memory or hard disk.

ATS9146 PCI Express digitizers are an ideal solution for cost-sensitive OEM applications that require a digitizer to be embedded into the customer’s equipment.

ATS9146 is supplied with AlazarDSO oscilloscope software that lets the user get started immediately without having to write any software. Users who need to integrate the ATS9146 in their
own program can purchase a software development kit, ATS‑SDK, for C/C++, C#, Python, MATLAB, and LabVIEW for both Windows and Linux operating system.

All of this advanced functionality is packaged in a low power, half-length PCI Express card
