Main features
  • Two-channel USB digital oscilloscope (1 MΩ, ±25 V, differential, 14-bit, 100 MS/s, 30 MHz+*)
  • Two-channel arbitrary waveform generator (±5 V, 14-bit, 100 MS/s, 12 MHz+ bandwidth*)
  • 16-channel digital logic analyzer (3.3 V CMOS and 1.8 V or 5 V tolerant, 100 MS/s)
  • 16-channel pattern generator (3.3 V CMOS, 100 MS/s)
  • 16-channel virtual digital I/O including buttons, switches, displays, and LEDs, which is perfect for logic training applications
  • Two input/output digital trigger signals for linking multiple instruments or providing an external trigger source
  • Two channel voltmeter
  • Network Analyzer with Bode, Nyquist, Nichols transfer diagrams of a circuit. The Network Analyzer has a range of 1 Hz to 10 MHz
  • Spectrum Analyzer capable of power spectrum and spectral measurements (noise floor, SFDR, SNR, THD, etc.)
  • Data Logger with exportable data and plot functionality
  • Impedance Analyzer for analyzing capacitive and inductive elements
  • Curve Tracer to analyze characteristics of discrete semiconductors such as diodes and transistors
  • Protocol Analyzer with SPI, I2C, CAN, AVR, and UART
  • Two programmable power supplies (0.5 V to 5 V , -0.5 V to -5 V). The maximum available output current and power depend on the Analog Discovery 2 powering choice.
  • Stereo audio amplifier to drive external headphones or speakers with replicated Arbitrary Waveform Generator signals
  • An available Software Development Kit for programming with Python and C++, and a toolkit for programming with LabVIEW.
  • MATLAB support for the Data Acquisition Toolbox

Analog Discovery 2 : 100 Me/s 14-bit Multifunction Oscilloscope and Arbitrary Generator

What is the Analog Discovery 2?

If you’re wondering where to buy an oscilloscope or how to buy an oscilloscope, you’ve come to the right place. Digilent Analog Discovery 2 is a USB oscilloscope, logic analyzer, and multi-function instrument that allows users to measure, visualize, generate, record, and control mixed-signal circuits of all kinds. Despite our competitive oscilloscope price, we never compromise on quality. Developed in conjunction with Analog Devices and supported by Xilinx University Program, this compact oscilloscope is small enough to be a pocket oscilloscope, but powerful enough to replace a stack of lab oscilloscopes and equipment, providing engineering professionals, students, hobbyists, and electronic enthusiasts the freedom to work with analog and digital circuits in virtually any environment, in or out of the lab. The analog and digital inputs and outputs can be connected to a circuit using simple wire probes; alternatively, the Analog Discovery BNC Adapter and BNC probes can be used to connect and utilize the inputs and outputs.

Driven by the free WaveForms software (Mac, Linux, and Windows compatible), this small oscilloscope can be configured to work as any one of several traditional test and measurement instruments including an Oscilloscope, Waveform Generator, Power Supply, Voltmeter, Data Logger, Logic Analyzer, Pattern Generator, Static I/O, Spectrum Analyzer, Network Analyzer, Impedance Analyzer, Protocol Analyzer, and Curve Tracer.

When you buy an oscilloscope from Digilent, you can be confident that you’re getting an excellent product from a trusted brand. We’re committed to providing our customers with the best possible experience, whether you’re a student just starting out or a seasoned professional. We also offer the best oscilloscope price on the market for verified academic accounts, so if you’re looking to reduce the oscilloscope cost, head over to our academic verification page for more information. If you’re an international customer, we have a network of authorized oscilloscope distributors that may have better shipping options. To find an oscilloscope distributor near you, you can select the distributor button above or visit our Affiliations page.

USB Oscilloscope

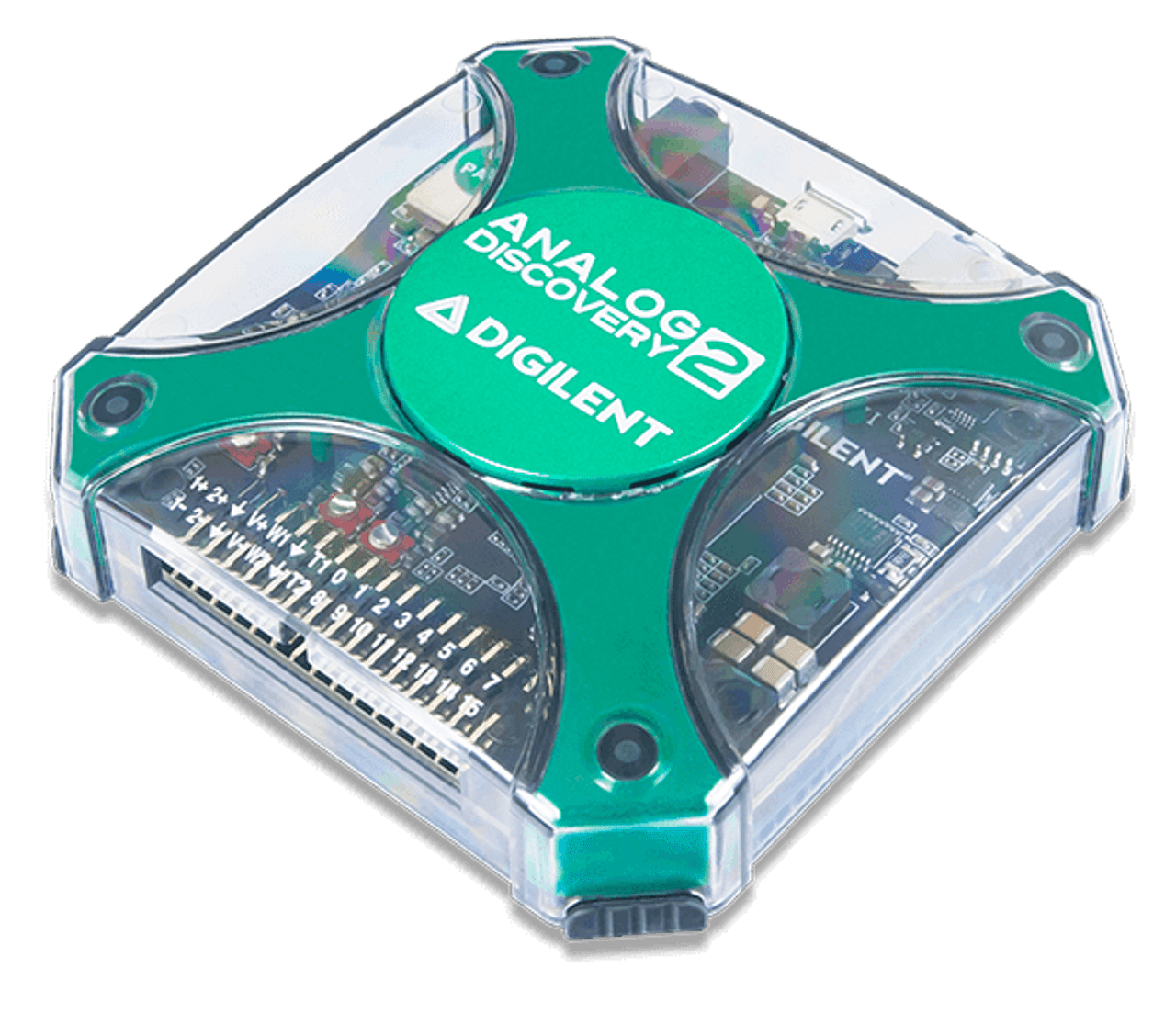

The Analog Discovery 2 oscilloscope is designed to be a portable alternative to a stack of benchtop equipment. It’s durable enclosure measures (3.23 inch x 3.25 inch x7/8 inch) and fits in a pocket. The Digilent Discovery 2 can be connected to circuits and designs via the included female flywires, or used in conjunction with the included gender changers when a male connection is necessary.

Accessories can be purchased separately to provide additional functionality, such as the BNC Adapter for higher bandwidth and BNC connectors, or the Breadboard Adapter and Breadboard Breakout for a direct connection to the breadboard, or the Impedance Analyzer for additional Impedance measurement functionality. The Analog Discovery 2 comes packaged in a durable project box that will fit all the included accessories and some additional adapter boards. The project box measures (7″ x 5.75″ x 1.5″) and provides even more durability when stashing your portable Oscilloscope and multi-function instrument in your backpack or briefcase.



Prix HT : 322,00 Shipped within 3 to 4 weeks
