ADQ-610 - 8 isolated voltage outputs

ADQ-610 - 8 isolated voltage outputs
Clear
Main features
  • 4/8 isolated channels for voltage output
  • Output voltage range: ±10 V
  • Output rate: 500 kS/s synchronously
  • Independent 16 bit DAC per analog output
  • Isolation voltage: 700 V (chan. to chan. / chan. to PC)
  • 8 external trigger inputs, one per analog output
  • 8 bit digital I/O port (5V TTL level) via HDMI connector
  • Monitoring of the digital inputs on bit change with interrupt generation
  • Special terminal block for ADQ-610 series (ADQ-TB-COAX-HDMI-HUT) optional
  • Optional suitable cables with MMCX male to BNC male connectors or MMCX to MMCX male connectors
ADQ-614 cPCI board, 4 channels DAC 500 KS/s, 16-bit
ADQ-618 cPCI board, 8 channels DAC 500 KS/s, 16-bit

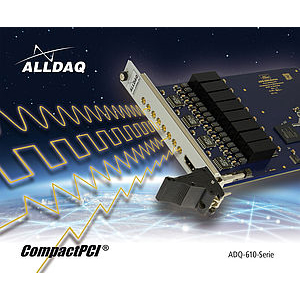

Isolated 8 channel voltage output board, 16 bit D/A conversion up to 500 kS/s, 8 digital I/Os

The D/A converter boards of the ALLDAQ ADQ-610 series are for high-precise voltage output, e. g. for testing of embedded systems in the context of hardware in the loop (HiL) simulations or for generating audio signals.

Software Support

  • Drivers for Windows 10/8.1/8/7/Vista SP2 (32/64 bit)
  • API with a unique programming logic for Windows
  • Programming support (SDK) with examples for C++, C#, Visual Basic, Delphi/Pascal and Python included
  • ALLDAQ-Manager – Utility software offers a central access to the parameters of the ALLDAQ driver system and the help files
  • Virtual Instruments (VIs) for LabVIEW™
  • MATLAB® interface with examples and help file
