ADP 3000 Series - Portable High Resolution Mixed Signal Oscilloscope

ADP 3000 Series - Portable High Resolution Mixed Signal Oscilloscope
Clear
Main features
  • Oscilloscope with LAN/USB interface
    • 2 or 4 channels depending on model
    • Sampling 100 Me/s
    • Bandwidth 55 MHz
    • Input voltage +/- 25 V (+/- 50 V diff)
  • Analog Outputs
    • 2 channels
    • 14-bit resolution
    • Sampling 125 Me/s
    • Amplitude +/- 5 V
  • Digital Inputs/Outputs
    • Logic analyzer, pattern generator 125 Me/s
    • 16 channels
    • Logic levels 1.2 V to 3.3 V
ADP3250 962 €
ADP3250-Probe 1069 €
ADP3450 1393 €
ADP3450-Probe 1564 €

ADP3000 Series :

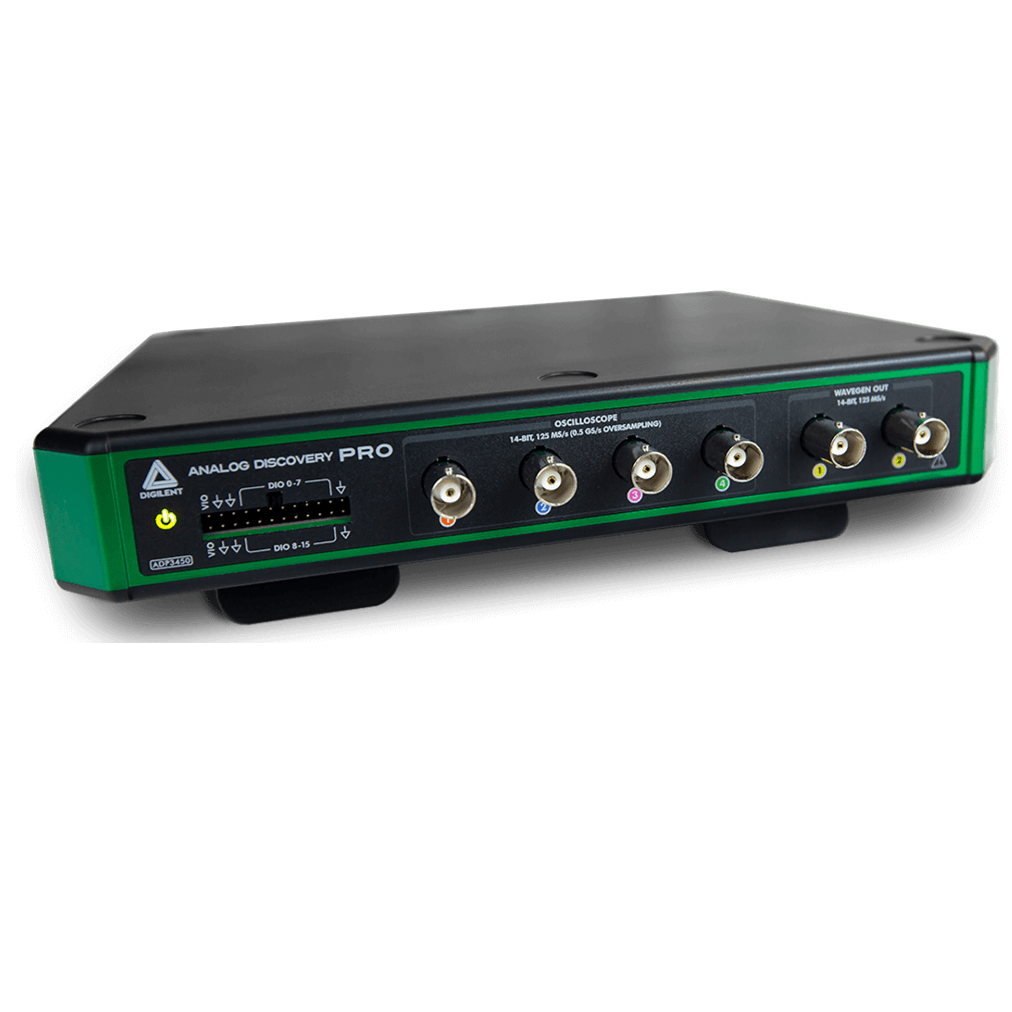

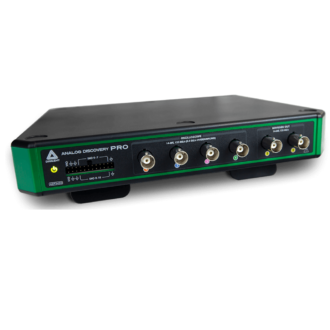

ADP3450 is a Analog Discovery Pro 3000 Series four channel high-resolution oscilloscope offering 14-bit resolution at up to 0.5 GS/s. Additionally, to meet the needs of an increasingly digital world, 16 dedicated digital channels make the Analog Discovery Pro a true mixed signal oscilloscope. With the included digital power supply, digital outputs, two channel arbitrary waveform generator and two dedicated external triggers the Analog Discovery Pro comes with 12 instruments ready to analyse mixed signal systems through our free software, WaveForms.
  • Triggering: edge, pulse, transition, hysteresis, and many others
  • Cross-triggering with logic analyser, waveform generator, pattern generator or external trigger
  • Sampling modes: average, decimate, min/max
  • Mixed signal visualization (analogue and digital signals share same view pane)
  • Real-time views: FFTs, XY plots, histograms, spectrograms, and others
  • Multiple math channels with complex functions
  • Cursors with advanced data measurements
  • Captured data files can be exported in standard formats
  • Scope configurations can be saved, exported, and imported
