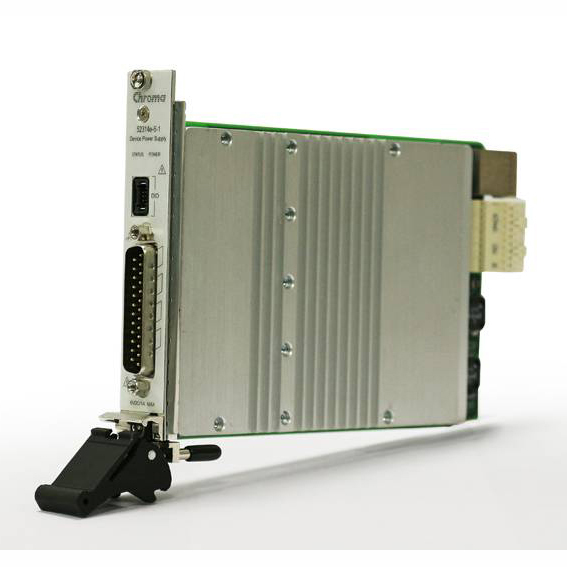

Chroma 52310e Series is a programmable PXI-Express DPS (Device Power Supply) Card designed for high-accuracy and reliable output power for device test applications. Its compact size, easy level of integration, and high flexibility make the 52310e Series ideal for multi-channel power supplies.
Chroma 52310e Series features 8 selectable control bandwidths to ensure high speed output and stable operation; multiple current measurement ranges with a 20-bit DAC/ADC provide the highest resolution and accuracy with a sampling rate up to 600K S/sec; programmable internal series resistance for battery simulation.
Chroma 52310e DPS series has a patented hardware sequence engine that has deterministic timing to control each DPS channel. The sequencer’s on-board memory can store up to 1024 sequencer commands and 32k measurement samples per channel.
Each 52310e DPS card can be configured to load-share by connecting channels in parallel. This enables users to achieve higher output currents on the same card.
A versatile soft front panel and C / C# / LabVIEW / LabWindows APIs are provided for rapid test development and deployment. The back connector is compatible with both PXIe and hybrid chassis slots. All of these features enable easy integration to PXIe or PXI-hybrid systems designed for a wide range of applications.
Chroma 52310e Series programmable device power supplies are designed specifically for test applications that demand precision output voltage/current and tightly coupled measurement capabilities. It provides a cost-effective solution ideal for a broad range of design and production applications such as semiconductor and components manufacturing.
