| 2502B | Microwave Signal Generator - 100 kHz to 2.5 GHz | |
| 2508B | Microwave Signal Generator - 2 GHz to 8 GHz | |
| 2520B | Microwave Signal Generator - 2 GHz to 20 GHz | |
| 2526B | Microwave Signal Generator - 2 GHz to 26.5 GHz | |
| 2540B | Microwave Signal Generator - 2 GHz to 40 GHz | |
| 2550B | Microwave Signal Generator - 2 GHz to 50 GHz |
2500B - Microwave Signal Generator - 100 KHz to 50 GHz depending of the model
Main features
- Gamme de fréquence: 2GHz à 8 GHz
- Puissance de sortie: +13 dBm à 8 GHz
- +10 dBm avec atténuateur à 50 GHz
- Bruit de phase basse standard
- -109 dBc / Hz à 10 GHz et décalage de 10 kHz
- Option de bruits de phase à fermeture ultra-faible
- -90 dBc / Hz à 10 GHz et 100 Hz de décalage
- -70 dBc / Hz à 10 GHz et 10 Hz de décalage
- Base de temps de stabilité élevée pour une précision de fréquence exceptionnelle
- Résolution de fréquence 0,001 Hz
- Excellente pureté spectrale
- Harmoniques <-55 dBc
- Sous-harmoniques <-60 dBc
- Spurious <-58 dBc
- Modulation de phase
- Taux de 100 Hz à 100 kHz
- Peak Dev 10 rad-pk / N
- Mode rafale d’impulsions
- 1 à 300 impulsions / éclatement
- Définition de la largeur d’impulsion, le taux de répétition et la période de rafale
- Option d’atténuateur électronique (2508B uniquement)
- Gamme de 110 dB
- Option de mode Power Boost
- Interface USB et Ethernet LAN
- Modes d’émulation, maintenant standard sur tous les générateurs de signaux micro-ondes de la série 2500B (pas toutes les commandes sont disponibles)

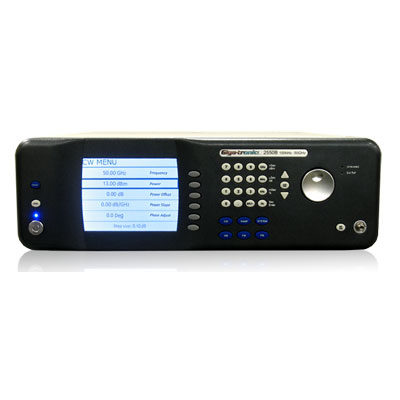

The 2500B Microwave Signal Generator is a high-performance CW and swept frequency signal source covering the frequency range of 100 kHz to 50 GHz (depending of the model), with high signal purity, high output power, fast frequency switching speed and a full suite of analog modulation capability. The 2500B Microwave Signal Generator features high time base stability, frequency resolution of 0.001 Hz and ultra-low phase noise, harmonics and spurious for applications requiring clean pure signals. Modulation capability includes amplitude modulation (AM), frequency modulation (FM), phase modulation and high-speed pulse modulation (PM) with pulse width as low as 10 ns. Remote programming capability is over GPIB (IEEE-488) or Ethernet LAN.
Advanced Synthesizer Technology
The 2500B series Microwave Signal Generator utilizes new Advanced Synthesizer Technology that delivers excellent close in phase noise performance of -77dBc @ 100 Hz and -96dBc @ 1KHz and an ultra low phase noise performance of -109 dBc @ 10 kHz and 100 kHz offset on a 10 GHz carrier frequency.
Faster to Program
Every 2500B Microwave Signal Generator comes with Spanawave/Giga-tronics Automation Xpress, a PC based software package designed for enhanced user interface and automatic test systems. The Automation Xpress CD includes a full-featured plug-and-play driver and soft front panels to provide the ATE system integrator with everything needed to get up and running fast. A comprehensive LIST mode, Command-Line interpreter with script and loop capability, and GPIB traffic monitoring are just a few of the many features a test system programmer will appreciate when developing and debugging Test Program Sets.
Options
17A – Add Internal and External Modulation Suite (includes internal function generator)
17B – Add External Modulation Suite
18 – Add 100 kHz to 2 GHz Frequency Range (Standard on the 2502B model)
20 – Add High RF Output Power
22 – Move RF Output Connector to Rear Panel
26A – Add 90 dB Mechanical Step Attenuator, for 2408C and 2420C models
27 – Add 110 dB Electronic Step Attenuator, for 2502B and 2508B only
28 – Add Ultra-Low Close-in Phase Noise
29 – Add Fast Frequency Switching Speed
32 – Add Narrow Pulse Width ≤ 100 ns (Requires Option 17A or 17B)
44 – Replace Standard Front Panel with Blank Front Panel (Requires Option 22)
46 – Add Rack Slide Kit
